RS-450.IP Intercom Substation

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

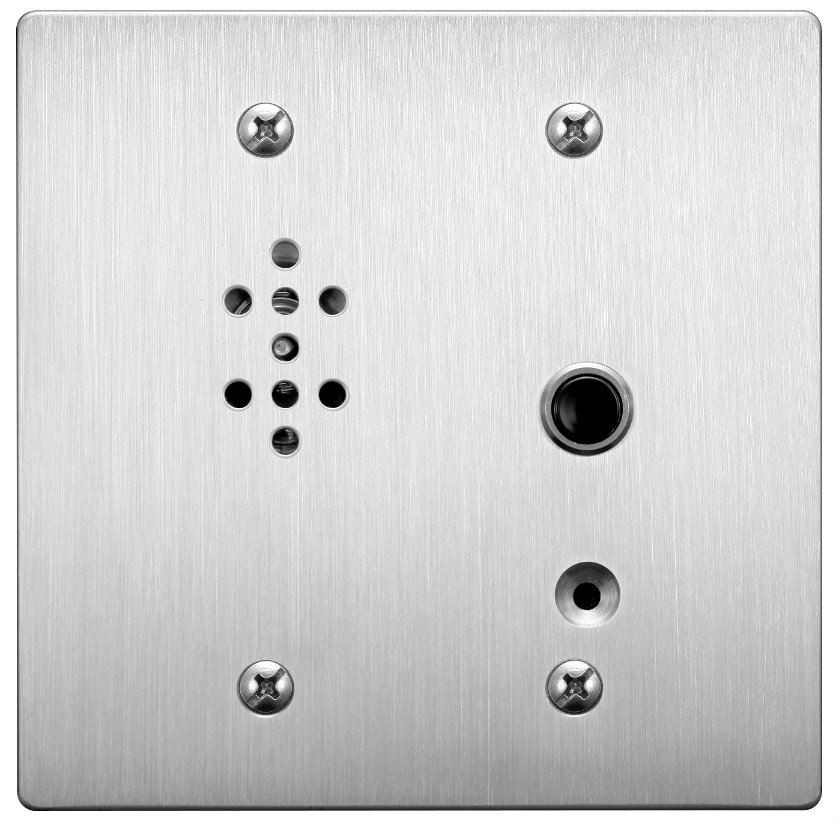

RS-450.IP Intercom Substation

The RS-450 is a substation to be connected to the N-8400RS 4-Wire Substation Interface Unit. Pressing a call button will initiate a call to a preprogrammed master station, enabling a conversation.

Specifications:

Call Button Momentary (Emergency call: Press twice within 400 ms.)
Rated Input 1 W
Internal Speaker cone-type
Internal Mic Electret condenser type
Wiring Twisted pair cables (2-pair)
Transmission Range 1 km (1093 yd)/φ0.5 mm (AWG24)
1.5 km (1640 yd)/φ0.65 mm (AWG22)
2 km (2187 yd)/φ0.9 mm (AWG19)
Operating Temperature -10 to +50 (14 bF to 122 bF)
(Temperature range not to freeze the speaker and switch)
Finish Panel: Stainless steel, hairline
Call Button: Resin, black
Dimensions 120 (W) × 120 (H) × 41.5 (D) mm (4.72' × 4.72' × 1.63')
Weight 510 g (1.12 lb)
Accessory Box mounting screw (No.6-32UNC × 18) ……4,
Box mounting screw (M4 × 25) ……4
Applicable Box For flush-mount: 2-gang electrical box YC-302 (option)
For surface-mount: Indoor wall-mount box YC-822 (option)



Brochure : https://cdn1.npcdn.net/attachments/1459318428a781d1e2b47fc6d0f3261bf868ebd7a2.pdf
