DS-2CE12HFT-F28.Hikvision 5 MP ColorVu Fixed Bullet Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

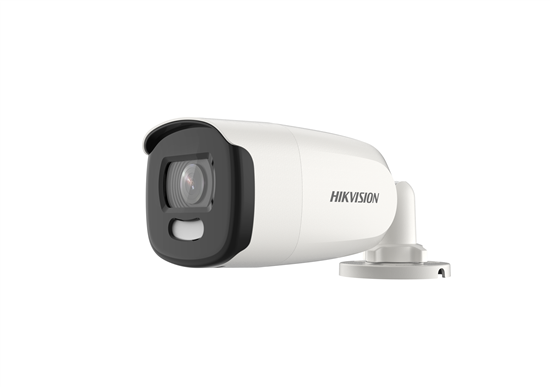

DS-2CE12HFT-F28.Hikvision 5 MP ColorVu Fixed Bullet Camera

DS-2CE12HFT-F28.Hikvision 5 MP ColorVu Fixed Bullet Camera

  • 5 MP full time color bullet camera
  • 24/7 full color imaging
  • 2.8 mm fixed focal lens
  • Warm supplemental light with 40 m range
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
  • Camera
  • Image Sensor5 MP CMOS
  • Signal SystemPAL/NTSC
  • Frame RateTVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
  • Resolution2560 (H) × 1944 (V)
  • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Lens2.8 mm fixed lens
  • Horizontal Field Of View2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
  • Lens MountM16
  • Day & NightColor
  • WDR (Wide Dynamic Range)≥130 dB
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation 0 to 360°
  • Menu
  • White LightAUTO/OFF
  • Image ModeSTD/HIGH-SAT
  • AGCSupport
  • Day/Night ModeColor
  • White BalanceATW/MANUAL
  • HLCYes
  • BLC (Backlight Compensation)Yes
  • LanguageEnglish
  • FunctionsBrightness, Sharpness, Mirror, Smart Light
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • Power ConsumptionMax. 4.9 W
  • Protection LevelIP67
  • MaterialMetal
  • IR RangeUp to 40 m
  • CommunicationHIKVISION-C
  • Dimensions82.6 mm × 77.1 mm × 220.4 mm (3.25' × 3.04' × 8.68')
  • WeightApprox. 565 g (1.25 lb.)
Brouchure: https://cdn1.npcdn.net/attachments/15813941870af13fd259011654fa8e50c31a31187f.pdf
