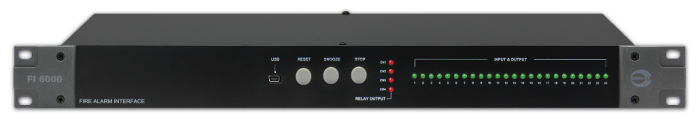

FI6000 .FIRE ALARM INTERFACE UNIT

Upon activation of a distress situation, there is a need to address them properly, either it is a false alarm or otherwise. FI6000 is an interface to Fire Alarm Control Panel, which is programmed to perform a sequence of activities upon receiving contact signal from the former.FI6000 can be integrated with various Amperes equipment such as zone decoder, zone selector, siren unit, EVAC voice message player, etc. The most critical application is to perform phased evacuation / broadcast in accordance to the requirement of EN54.

Each controller has 24 contacts, which normally denotes zone number and can be cascaded as required. The unit is easily programmed via the configuration software.


Specifications:


INPUT:

Operating Voltage 24V DC
Current Source Idle 20mA
Current Source Channel and relay trigger 0.10A
Power Consumption Idle 0.48W
USB Input USB to RS232 Driver
Communication Control RS485
Baud Rate 19200 bps
Unit Cascade Control Software Control
Channel Input 24 Channel
Software Configuration FI6000 Configurator

OUTPUT:
Channel Output 4 Channel
Contact Rating 3A
LED Indicator 28 LEDs

CASE:
Dimension 482 x 44 x 180
Weight 1.85 kg





Brochure : https://cdn1.npcdn.net/attachments/1550112408504e5b3e37a2d6bc037b25622e97a6fc.pdf
