enquiry@asip.com.mySX-200IP.IP Interface Module
PA/Sound System --- TOA ---
| Previous ‹‹ | » Next |

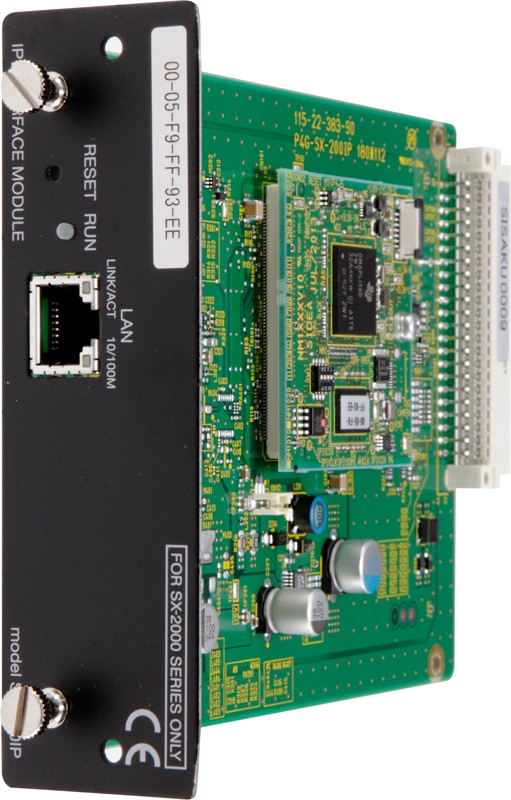

Installed in the SX-2100AI Audio input unit of the SX-2000 series and connected to a network (LAN or WAN), the SX-200IP allows paging announcements to be made to the SX-2000 system from the N-8000 series' station(s) (N-8600MS and N-8610RM) employing the packet audio technology.
Specifications:
| Network Section |
Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation) Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP Connector: LAN: RJ45 connector Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software) 48 kHz sample rate is used for SX-2000 system only. Quantifying bit number: 16 bits Voice encoding method: Sub-band ADPCM, Cryptosystem Voice packet loss recovery: Silence insertion Audio delay time: 80 ms, 320 ms (controllable on the software) |
| Indicator | Operation indicator (RUN) |
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Panel: Pre-coated steel plate, black, 30 % gloss |
| Dimensions | 35 (W) × 119.5 (H) × 178.4 (D) mm (1.38' × 4.7' × 7.02') |
| Weight | 150 g (0.33 lb) |
Brochure : https://cdn1.npcdn.net/attachments/1549941455504e5b3e37a2d6bc037b25622e97a6fc.pdf
