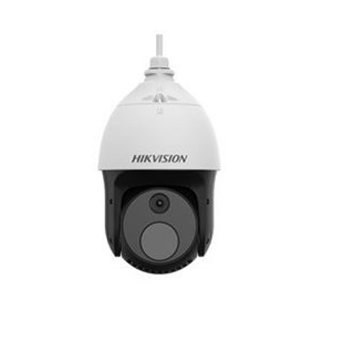

DS-2TD4237-25/V2. Hikvision Thermal & Optical Bi-spectrum Network Speed Dome. #ASIP Connect
- High sensitivity thermal module with 384 x 288 resolution
- NETD is less than 40 mk (@25° C, F#=1.0)
- Supports contrast adjustment
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Up to 15 palettes of adjustable color
- Smart tracking: Panorama, event and multi-scene patrol
- Smart tracking linkage: Thermal and optical views
- Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
- Reliable temperature-anomaly alarm
- Advanced fire detection algorithm
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Pixel Interval17μm
- NETDless than 40mk (@25°C,F#=1.0)
- MRAD0.68
- Field Of View14.88° × 11.19°
- Min. Focusing Distance13 m
- ApertureF1.0
- Response Waveband8μm to 14μm
- Optical Module
- Max. Resolution1920 × 1080
- Image Sensor1/2.8’’ Progressive Scan CMOS
- Min. IlluminationColor: 0.05 lux @ (F1.2 , AGC On ),B/W : 0.01 lux @ (F1.2 , AGC On )
- Field Of View65.6° to 2.46° (Wide-Tele)
- Aperture RangeF1.2-F4.4
- Focus ModeAuto / Semiautomatic / Manual
- WDR120dB
- Shutter Speed1s to 1/100,000s
- Day & NightIR Cut Filter
- Smart Function
- VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
- Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy±8 °C (14.4 °F)
- Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
- PTZ
- Movement RangePan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip)
- Pan Speed0.1°/s to 200°/s
- Tilt Speed0.1°/s to 105°/s
- Proportional ZoomYes
- Presets300
- Patrol Scan8; Up to 32 Presets Per Patrol
- Pattern Scan4; More Than 10 Minutes Per Pattern
- Power Off MemoryYes
- ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PT StatusTurn On/Turn Off
- Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
- Infrared
- IR DistanceUp to 100 m
- IR Intensity And AngleAutomatically adjusted
- Network
- Main StreamVisible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) ,Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) ,Thermal: 25fps(1280 × 720), 25fps(704 × 546), 25fps(384 × 288), 25fps(352 × 288)
- Sub StreamVisible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288) ,Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 288) ,Thermal: 25fps(704 × 546), 25fps(384 × 288), 25fps(352 × 288)
- Video CompressionH.265 (Main Profile) ,H.264 (Baseline/Main/High Profile)
- Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- Simultaneous Live ViewUp to 20-ch
- User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
- Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- Integration
- Alarm InputUp to 7-ch Input (0-5V DC)
- Alarm OutputUp to 2-ch Relay Output; Support Alarm Linkage
- Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
- Audio OutputLinear Level; Impedance: 600Ω
- EthernetBuilt-in RJ45; 10M/100M Ethernet Interface
- SD Memory CardBuilt-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
- Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- RS485Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
- Application ProgrammingOpen-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
- ClientiVMS-4200
- Web BrowserIE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages
- General
- Menu LanguageEnglish
- Power24 V AC± 25%
- Power Consumption30W
- Work Temperature/HumidityFrom -30 °C to 60 °C (-22 °F to 140 °F), 90% or less
- Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimensions305 mm × 185 mm × 163 mm (12.01 '' × 7.28'' × 6.42 '')
- WeightApprox. 3.9Kg (8.6lb)
