Plato-P80KLS. MicroEngine Proximity Reader with Keypad & LCD. #ASIP Connect

     Door Access System ---    MICROENGINE    ---

Previous ‹‹ » Next

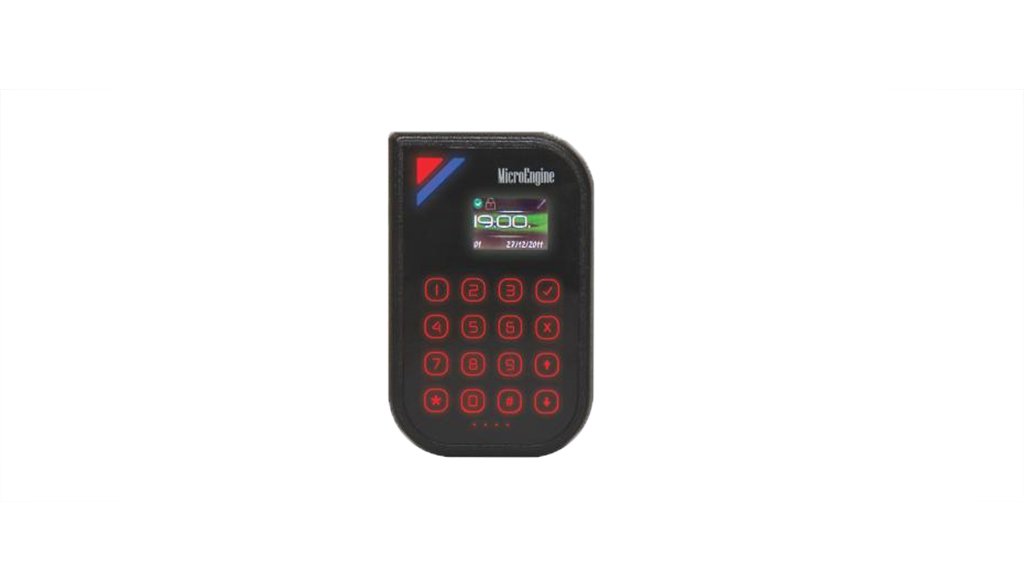

Plato-P80KLS. MicroEngine Proximity Reader with Keypad &

Plato-P80KLS. MicroEngine Proximity Reader with Keypad & LCD. #ASIP Connect

  • Slim and stylish design
  • Weather proof
  • Using RS485 – longer distance (up to 1km away from controller)
  • EM/ Mifare CSN / CEPAS / Mifare Sector Reading
  • Better security with 16-digit card numbers
  • Not identification by Card Serial Number for Mifare Sector Reading
  • Touch Sense keypad
  • Colour LCD
  • 2 stylish LED indicators
  • Built-in buzzer
No Features Plato-P80KLS Plato-P80S
1. Connectivity RS485
2. LED indicator Blue and Red
3. Reader type EM Compatible
4. Card Digits 16
5. Buzzer Yes
6. Dimension (H x W x D) mm 90 x 57 x 16 80 x 43 x 16
7. Epoxy Yes
8. Weather proof Yes
9. Reading range Max 7cm
10. Material Body – PC
Faceplate – Acrylic
PC
11. Keypad Yes No
12. LCD Yes No
13. Input voltage 12VDC
14. Current (Typical) 180mA at 12VDC 150mA at 12VDC
15. Operating Temperature 0 – 50 °Celcius

m2000idiagram
