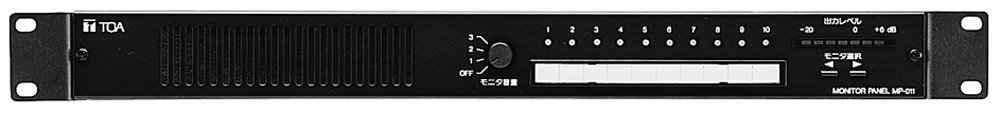

MP-011 Q.Monitor Panel

The MP-011 monitor panel comes with both the speaker and output meter, allowing visual and auditory check of audio signal status. Up to ten amplifier input and output levels can be switched and monitored.


Power Requirements 24 V DC
Current Consumption 400 mA (rated output)
Input 10 inputs
Amplifier output level : 50 V, 70 V, 100 V (changeable)
Line output level : 0 dBV (1 V)
Monitor Speaker 33 × 140 mm dynamic speaker, 3W / 8 Ω
Meter 7-segment LED meter
Control Signal Input Emergency control signal (skips volume contorol)
Talk switch signal (feedback prevention)
Color Black, semi-mat
Dimentions 482 (W) × 44 (H) × 219.1 (D) mm
Weight 2.5 kg
Accessories 5-pin connector cord …… 1, Fiber washer …… 4, Screw …… 4
Identification label …… 1
