RM-200XF.Fireman's Microphone

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

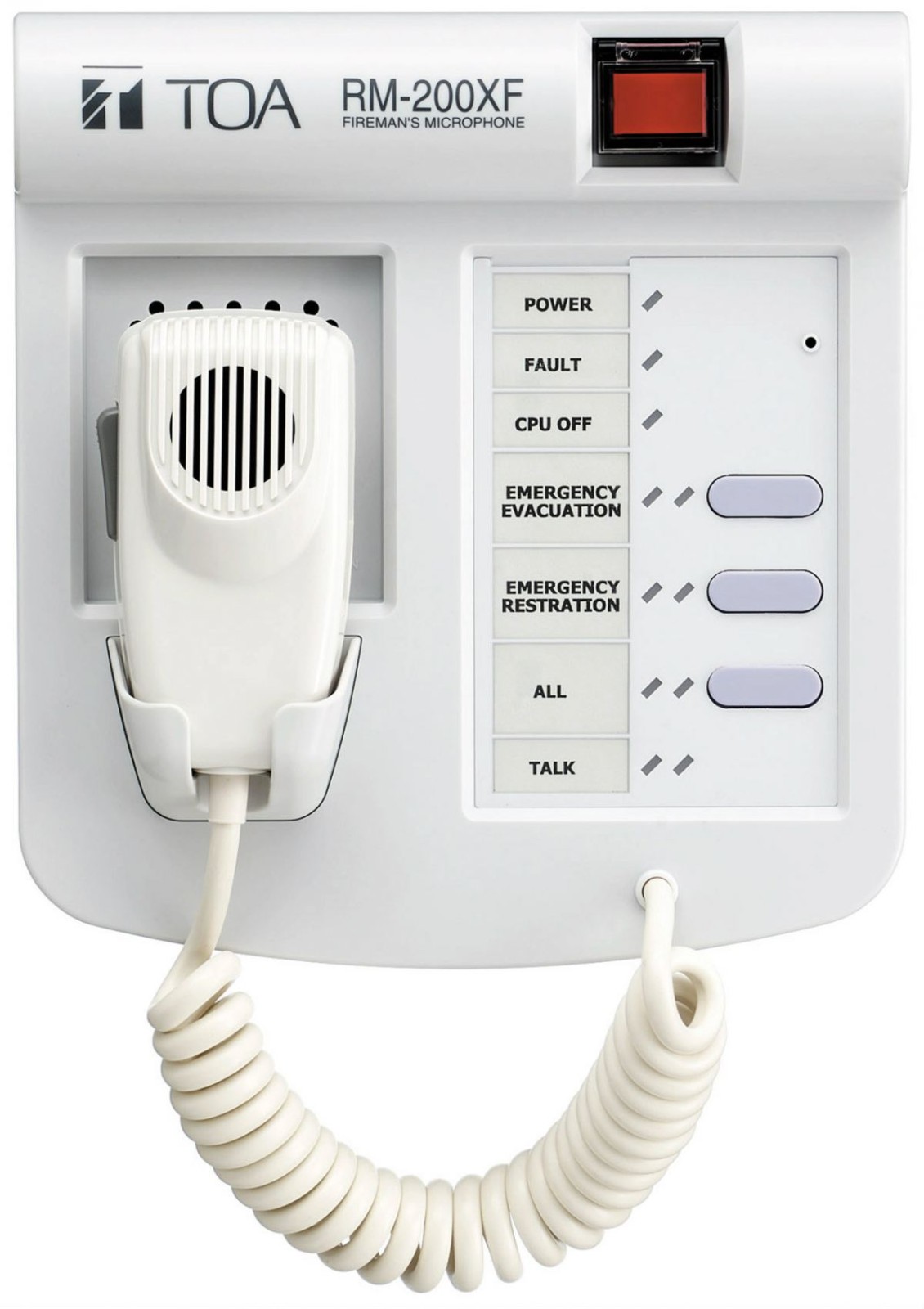

RM-200XF.Fireman's Microphone

A dedicated microphone for the VX-2000 system, the RM-200XF is designed to be exclusively used for emergency broadcast, however it can be used for general-purpose broadcast applications as well.

Specifications:

Power Source 24 V DC (operating range: 16 - 40 V DC)
Current Consumption 200 mA or less (RM-200XF), 850 mA (with 10 RM-210s connected)
Audio Output 0 dB*, 600 Ω, balanced
Hand-Held Microphone Dynamic microphone, Function switch (default: Press-to-talk),
Microphone element fault detection
Distortion 1 % or less
Frequency Response 200 Hz - 15 kHz
S/N Ratio 55 dB or more
Internal Monitor Speaker 200 mW
Volume Control Microphone volume control, Monitor speaker volume control
Number of Function Keys 5 (including Hand-held microphone's switch),
extendable up to 105 (with 10 RM-210s connected)
Key Extension 10 keys extension per RM-210, EXTENSION connector
Number of Connectable Units 4
Communication System LONWORKS Twisted Pair Free Topology Transceiver
Connection Cable and Connector Category 5 STP cable, plug-in screw connector
Communication Distance 500 m (Free topology wiring)
Finish ABS resin, blueish gray (PANTONE 538 or its equivalent)
Dimensions 200 (W) × 215 (H) × 82.5 (D) mm (excluding the coiled cord)
Weight 1.2 kg
Accessory Plug-in screw terminal…1, Wall mounting bracket…1, Wall mounting screw…2,
Box mounting screw…2
Applicable Box YS-11A


Brochure : https://cdn1.npcdn.net/attachments/1459738785b5c4544c0083f6db269a6b29023d3197.pdf
