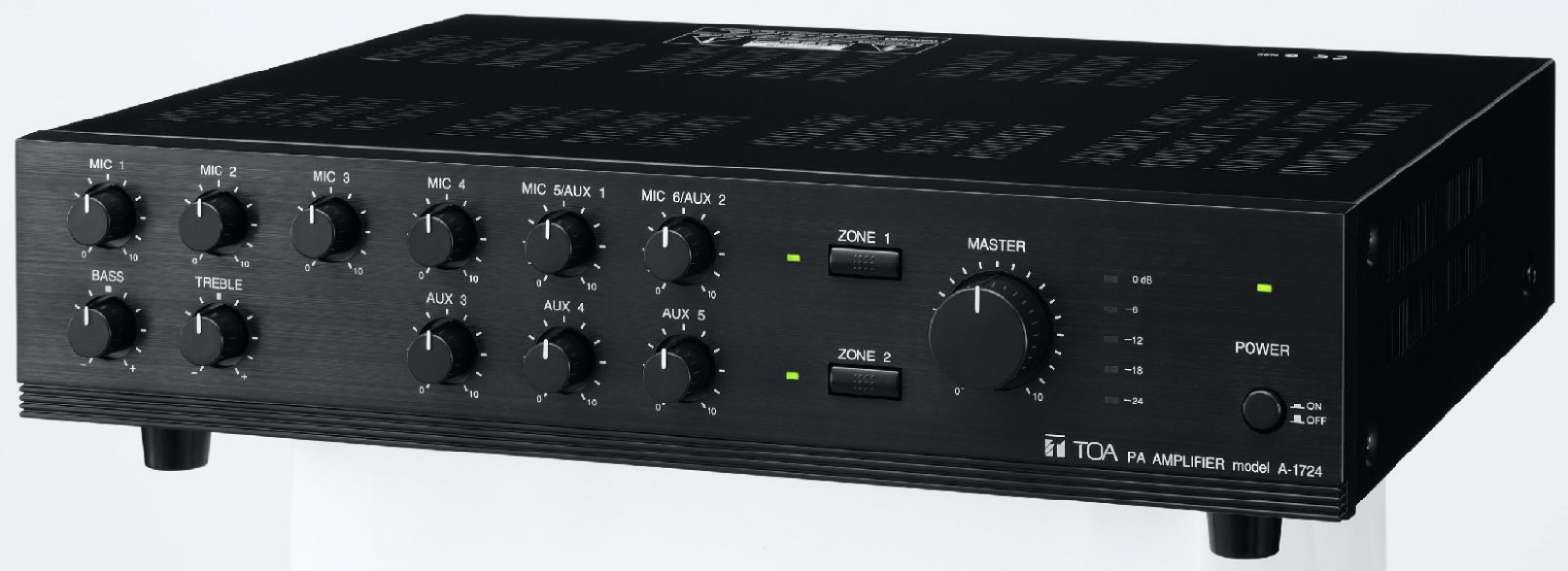

enquiry@asip.com.myA-1724.Mixer Power Amplifier
PA/Sound System --- TOA ---
| Previous ‹‹ | » Next |
Specification:
|
Power Source
|
220 - 230 V AC, 50/60 Hz |
| Rated Output |
240 W
|
| Power/Current Consumption | 532 W (rated output), 220 W (EN60065), 60 mA or less (when power switch is OFF) |
| Frequency Response | 50 Hz - 20 kHz (±3 dB) |
| Distortion | 2 % or less at 1 kHz, rated power |
| Input |
MIC 1 - 6: -60 dB*, 600 Ω, electronically-balanced,
combined type of XLR-3-31 equivalent and phone jack
AUX 1 - 2: -20 dB*, 600 Ω, electronically-balanced,
combined type of XLR-3-31 equivalent and phone jack
(Either MIC 5 or AUX 1, and either MIC 6 or AUX 2 selectable)
AUX 3 - 4: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
AUX 5: -20 dB*, 10 kΩ, unbalanced,
combined type of XLR-3-31 equivalent and phone jack
PWR AMP IN: 0 dB*, 600 Ω, unbalanced, RCA pin jack
(An equalizer or other signal processor connectable between LINE OUT
and PWR AMP IN terminals)
|
| Output |
REC: 0 dB*, 600 Ω, unbalanced, RCA pin jack
LINE: 0 dB*, 600 Ω, unbalanced, RCA pin jack
SPEAKER SELECTOR: 2 zone, high impedance (100 V line/42 Ω), individual selector key,
M4 screw terminal
DIRECT SPEAKER OUT: High impedance (100 V line/42 Ω), M4 screw terminal
Low impedance (4 - 16 Ω), M4 screw terminal
(Both Low and High impedance terminals cannot be used at the same time.)
|
| Phantom Power | ON or OFF for each MIC1 - 6 with switch setting (+17 V DC) |
| S/N Ratio (Band Pass : 20 Hz - 20 kHz) |
100 dB or more (Master volume: min)
76 dB or more (Master volume: max)
60 dB or more (MIC 1 - MIC 4)
53 dB or more (MIC 5, MIC 6)
76 dB or more (AUX 1 - AUX 5)
|
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Control Input |
REMOTE VOLUME: M3 screw terminal
POWER REMOTE: No-voltage make contact input,
open voltage: 28 V DC (when the unit's power is OFF),
short-circuit: 10 mA or less, M3 screw terminal
|
| Indicator | 5 point LED output level meter, Power indicator LED, Zone indicator LED |
| Operating Temperature | -10 ¡æ to +40 ¡æ |
| Finish |
Panel: ABS resin, black, hairline
Case: Steel plate, black
|
| Dimensions | 420 (W) × 107.7 (H) × 367 (D) mm |
| Weight | 13.5 kg |
| Accessory | Power cord ……1, Terminal block cover ……1, Terminal block cover mounting screw ……2 |
| Option |
Rack mounting bracket: MB-25B
Volume control cover: YA-920
|
Brochure Download: https://cdn1.npcdn.net/attachments/1493366345a77825df1b4bffb4e803446001bd13c7.pdf
