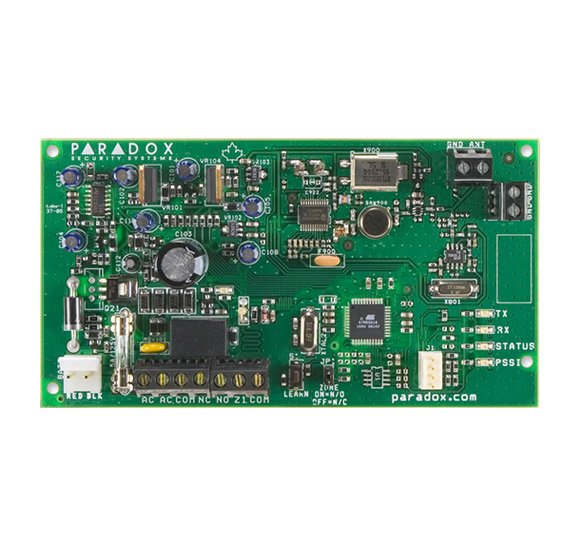

MG-RPT1 Wireless Repeater

Supporting peripheral to DIGIPLEX system.Extend up to 75 meter wireless coverage.You can have two RPT1 per system. See your console or panel’s programming guide for programming instructions. The Wireless Repeater also provides one PGM and one zone input with two-way wireless communication with the system.

• Built-in transceiver (433MHz or 868MHz)
• Allows to extend the range of wireless communications
• Supports all MAGELLAN transmitters
• Select which zone, PGM and/or keypad signals are repeated
• Signal strength display
• 1 programmable 5A relay output
• Universal transmitter input (N.O./N.C.)
• In-field firmware upgrade via 307USB and WinLoad
• 3 keypad-activated panic alarm
• Wireless range in a typical residential environment:

1. 75m (240ft) with 433MHz;
2. 50m (160ft) with 868MHz

• Compatible with MG5000, MG5050, MG6160, MG6130, MG6250 and RTX3
• Note: The RPT1 is not supported by the RTX3 when connected to an EVO panel.
• AC input (16Vac, 20VA)
• Fits in 20cm x 25.5cm x 7.6cm (8in x 10in x 3in) and 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal boxes
