iPX5400. Amperes Ethernet Data & Audio Transceiver. #ASIP Connect

     PA/Sound System ---    AMPERES    ---

Previous ‹‹ » Next

iPX5400. Amperes Ethernet Data & Audio Transceiver. #ASI

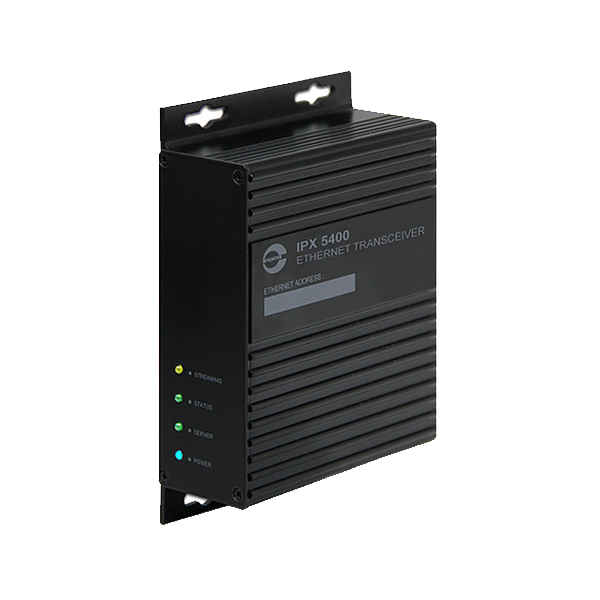

iPX5400. Amperes Ethernet Data & Audio Transceiver. #ASIP Connect

iPX5400 works in pair, transmitting audio and data in duplex in LAN, direct network connection or using fiber cable through Fiber to LAN converter.

Why it is required ?....

In the event that a paging point or audio source is required to be transmitted to other location / main rack, and when new cabling is not possible, iPX5400 can be used to run in the existing LAN.

Another application for long distance connectivity, say Guard House to Main Building, with fiber laid to avoid surge and audio loss to the copper cable, iPX5400 is a right tool to transmit the audio and data, coupled with fiber - LAN converter.

iPX5400 can work independently without the need of iPX5101 Network controller, thus providing a great solution to a simple problem of connectivity.


Features
  • Low latency at 20 ms

  • Duplex RS485 data and voice packets

  • Half duplex for music streaming

  • General purpose relay contact available

  • 3 modes of streaming

  • Direct connections without network switch with auto crossover


    Connection Diagram



     Amperes Ethernet Data & Sound Transceiver - iPX5400


Brouchure: iPX5400
