8760-X1-PRO. Huawei AirEngine Access Point. #ASIP Connect

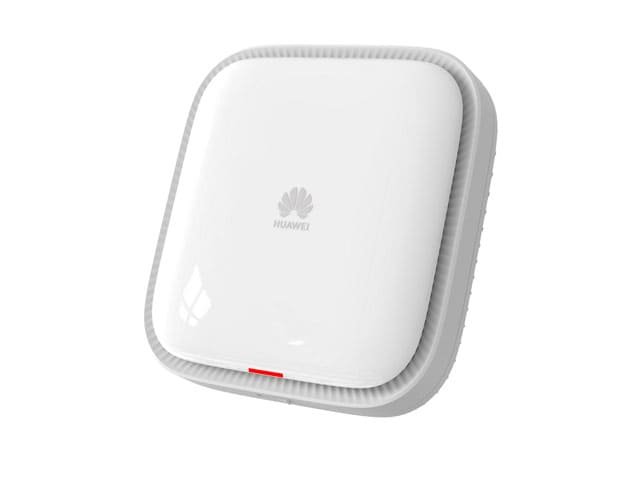

AirEngine 8760-X1-PRO — Huawei’s flagship Wi-Fi 6 (802.11ax) indoor Access Point (AP) — features 16 Smart Antennas and is equipped to handle high-density and bandwidth-hungry scenarios.

Unique to Huawei and derived from innovations made in 5G technologies, the 16 built-in, dual-band Smart Antennas achieve an astonishing device rate of up to 10.75 Gbit/s, delivering a fiber-like wireless experience. Smart Antennas also effectively improve signal gain, with signals following users to achieve complete coverage with zero blind spots.

Equipped with Software-Defined Radios (SDRs) by default, and with the ability to flexibly switch between three modes — dual-radio, triple-radio, and dual-radio + one scanning radio — AirEngine 8760-X1-PRO is designed for challenging high-density environments where interference is heavy. Such strengths make the AP a good fit for enterprise office, government, and higher education use, plus primary and secondary education.


Parameters AirEngine 8760-X1-PRO
Dimensions (H x W x D) 61 mm x 220 mm x 220 mm
Power Input DC: 48 V ± 10%
PoE power supply: in compliance with IEEE 802.3bt
Maximum Number of Users ≤ 1024 (dual-radio mode)
≤ 1152 (triple-radio mode)
Note: The actual number of users varies according to the environment
Port 2 x 10 GE electrical and 1 x 10 GE SFP+
Built-in Bluetooth BLE 5.0
IoT Built-in IoT slots
Operating Temperature –10°C to 50°C
Antenna Type Built-in Smart Antennas
MIMO: Spatial Streams 2.4 GHz: 4x4:4; 5 GHz: 12x12:8
2.4 GHz: 4x4:4; 5 GHz-0: 8x8:8; 5 GHz-1: 4x4:4
Radio Protocols 802.11a/b/g/n/ac/ac Wave 2/ax
Maximum Rate 10.75 Gbit/s
