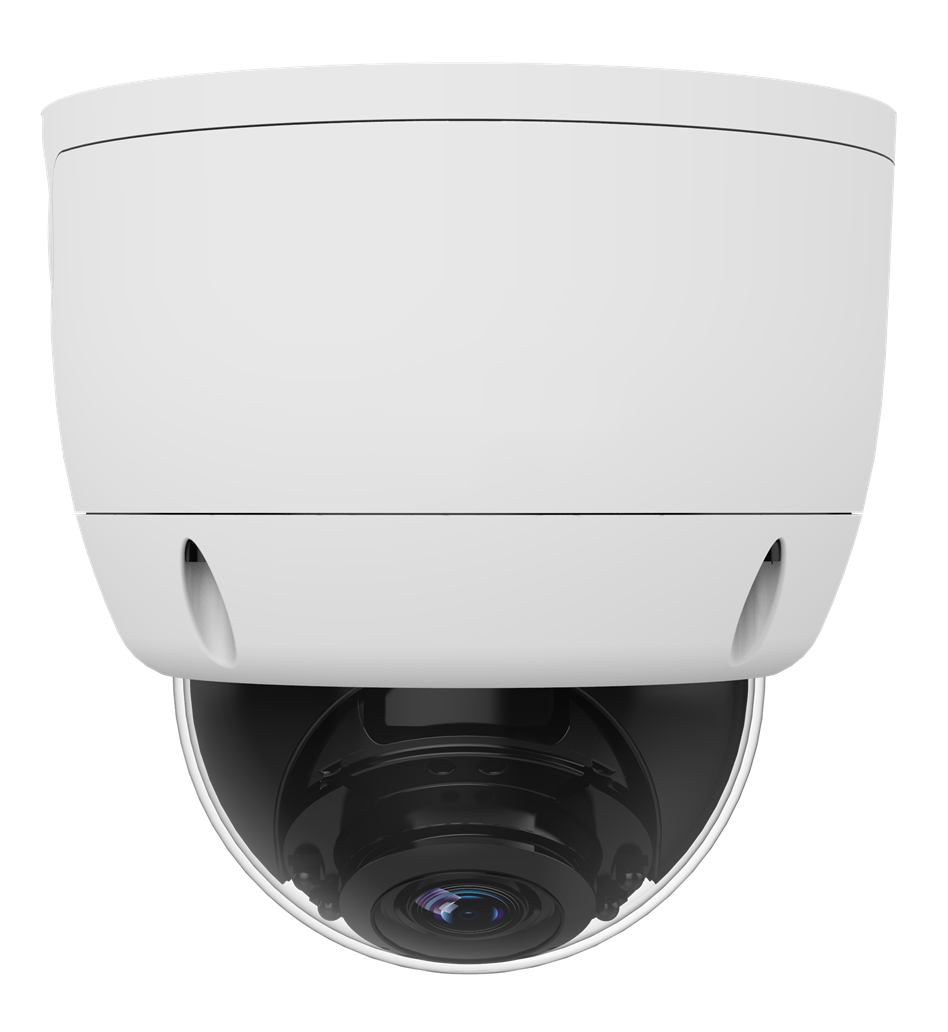

AVM7650M/AVM7721M. ASIS Performance Vandal/Weather Proof IR Dome IP Cameras. ASIP Connect
- Wide Dynamic Range (WDR)
- Auto Focus Motorized Zoom Lens
- H.265 / H.264 Compression Method
- IP66, 42μ x 4pcs IR LED (up to 30m)
- With Built-in PoE
Technical Specifications
|
Specifications*
|
AVM7650M
|
AVM7721M
|
|
Description
|
H.265/ H.264 AF-5MP
|
H.265/ H.264 Starlight AF-2MP
|
|
Image Sensor
|
1/2.8'' SONY Starvis Back-illuminated CMOS Sensor
|
|
|
Main Processor
|
HISILICON Hi3516D
|
HISILICON Hi3516E
|
|
Image Settings
|
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK (Flicker Control)
|
|
|
Resolution
|
5MP
|
2MP
|
|
Effective Pixels
|
2616(H) x 1964(V)
|
1945(H) x 1097(V)
|
|
Electronic Shutter Speed
|
Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
|
|
|
Signal-to-noise Ratio
|
≥52dB
|
|
|
Minimum Illumination
|
0.01Lux
|
0.01Lux
|
|
Recording Mode
|
NVR/NAS/CMS/Web
|
NVR/NAS/CMS/Web
|
|
Motion Detection
|
Yes
|
|
|
Lens
|
2.7 - 13.5mm Auto Focus Motorized Zoom Lens
|
2.7 - 13.5mm Auto Focus Motorized Zoom Lens
|
|
IR LEDs
|
42μ x 4pcs IR LED (30m), with IR-cut
|
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
|
PoE
(IEEE 802.3af) |
Internal
|
|
|
Video Compression
|
H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
|
|
|
Video Output
|
Network
|
|
|
Frame Rate (H.264)
|
5MP@20fps, 4MP/25fps, 1080p@30fps
|
1080p@30fps
|
|
Protocol
|
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
|
|
|
Interoperability
|
ONVIF 2.4
|
|
|
Power
|
12VDC±10%, 950mA | |
|
Weight
|
1.2kg
|
|
|
Dimensions
(D x H) |
Ø142 x 142 mm
|
|
|
Operating Conditions
|
-20°C - (+)60°C, Humidity 95% RH max
|
|
Brouchure: https://cdn1.npcdn.net/attachments/15991893560af13fd259011654fa8e50c31a31187f.pdf
