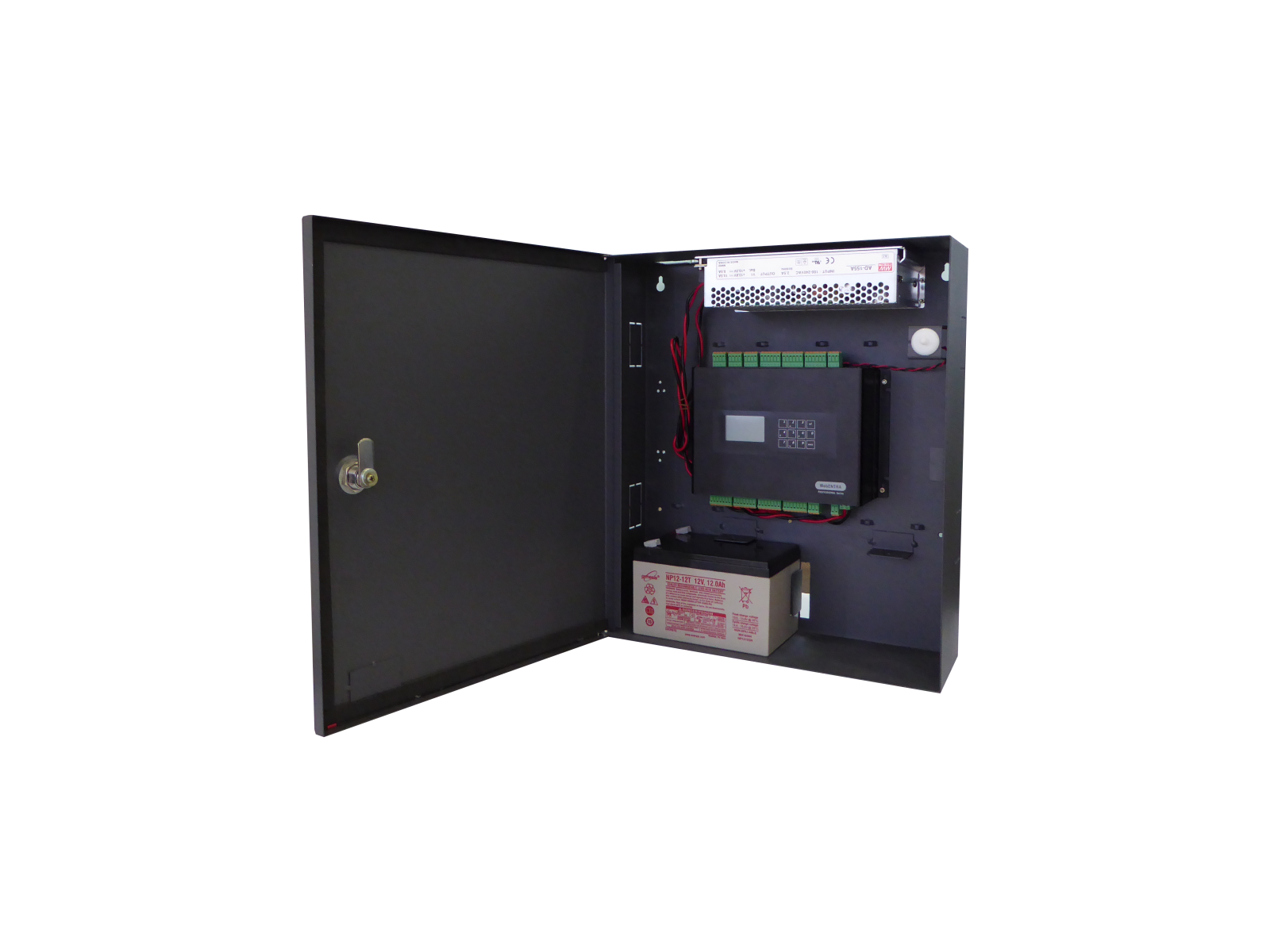

WebENTRA P901, P904, P908, P914, P918, P920, P930. Professional Series IP Access Controller. #ASIP Connect
The WebENTRA Professional is a modular access control product that starts with a 4 or 8 door IP controller. This product family has a highly resilient IP controller module with failover capability, dual CANbus for interconnecting modules and dual Ethernet host links that eliminates any potential SPOF (single-point-of-failure).
A built-in web browser user interface allows platform independent setup and operation. Any authorized browser log in gives access to online real-time events log, zoom-in floorplans, and a built-in report generator. Alarms can also be acknowledged or reset upon log in. This IP controller comes with a high performance database that supports 150,000 card IDs with a buffer for 2,500,000 events.
The architecture of the WebENTRA Professional series ensure that any system can be easily expanded with optional modules for additional doors and/or IOs to suit any application.
|
Key Features |
|
|
4/8 Door IP Access Controller
- Complete 4/8 Door IP controller modules
- Expandable to 32 doors in a single loop - 16x Readers with RS485 or 8x Readers with Wiegand per module |
Report Formats
- Reports can be generated in PDF and CSV formats for easy data export |
|
Navikey Smart Diagnostics
- Navigation keys and a LCD display on the controller for easy setup, diagnostics and quick enrolment |
Floorplan Rea-time Status
- Floorplans with online real-time status icons for connected devices |
|
Modular IO Expansion
- Modular expansion for up to 4 IO modules in various combinations - Input module with 32 alarm inputs or - Output module with 32 relays |
InstaStart Quick Setup
- Advanced Plus & Play Technology for fuss free and quick setup - Single button press to activate instant self- configuration |
|
Reader Interface
- Multiple reader interface options - ADNET - OSDP - Wiegand |
Web Browser User Interface
- Platform independent Compatible with IE, Firefox, Safari, Chrome, etc. - Full support for database maintenance, event reporting and status display |
|
2,500,000 Event Buffer Capacity
- Highly intelligent autonomous controller with local data storage for 2,500,000 event logs |
Failover Architecture
- Redundant Ethernet port - Redundant CANBus link - Failover capability to avoid potential SPOFs |
|
150,000 Card IDs
- Maximum capacity for 150,000 cardIDs |
IBSS.web Enterprise SMS
- IBSS.web Enterprise Security Management Software support |
Technical Specifications
|
Specifications
|
P901
|
P904
|
P908
|
P914
|
P918
|
P920
|
P930
|
|
Description
|
WebENTRA Professional Redundant IP Controller
|
WebENTRA Professional 4-Door IP Controller
|
WebENTRA Professional 8-Door IP Controller
|
WebENTRA Professional 4-Door Reader Module
|
WebENTRA Professional 8-Door Reader Module
|
WebENTRA Professional Input Module
|
WebENTRA Professional Output Module
|
|
Ethernet Host Link
|
2x Gigabit (ETH1, ETH2-Opt)
|
-
|
-
|
-
|
-
|
||
|
Web Browser
Connections |
10
|
10
|
10
|
-
|
-
|
-
|
-
|
|
CANBus
|
2 | ||||||
|
Max Door per Module
|
0 |
4
|
8
|
4
|
8
|
-
|
-
|
|
Max Modules
|
3x P914/P918; 4x P920/P930
|
-
|
-
|
-
|
-
|
||
|
Navikey
|
Yes
|
No
|
Yes
|
-
|
-
|
-
|
-
|
|
Encryption SAM Support
|
Yes
|
-
|
-
|
-
|
-
|
||
|
InstaStart
|
Yes
|
-
|
-
|
-
|
-
|
||
|
DC Power Supply
|
12V, 1A
|
12V, 0.5A
|
|||||
| Supported Protocol | - | ADNET / OSDP (19200bps) / Clex / Wiegand | ADNET / OSDP (19200bps) / Clex / Wiegand | ADNET / OSDP (19200bps) / Clex / Wiegand | ADNET / OSDP (19200bps) / Clex / Wiegand | - | - |
|
RS485 (Device)
|
No
|
Yes, 8 Readers Max (Support ADNET, OSDP & CLEX)
|
Yes, 16 Readers Max (Support ADNET, OSDP & CLEX)
|
Yes, 8 Readers Max (Support ADNET, OSDP & CLEX)
|
Yes, 16 Readers Max (Support ADNET, OSDP & CLEX)
|
No
|
No
|
|
Wiegand Ports
|
-
|
4
|
8
|
4
|
8
|
-
|
-
|
|
Alarm Input/ Relay Output
|
-
|
12/4
|
24/12
|
12/4
|
24/12
|
32/8
|
8/32
|
|
Input State
|
-
|
2 or 4 states, configurable
|
|||||
|
Relay Contact Rating
|
-
|
12V 2A max
|
|||||
|
Card IDs
|
150,000
|
-
|
-
|
-
|
-
|
||
|
Event Buffers
|
2,500,000
|
-
|
-
|
-
|
-
|
||
|
DC Power Supply
|
12V
|
||||||
|
Max. Current
(excluding locks) |
1A
|
0.5A
|
|||||
|
Operating
Temperature |
0 - 50°C
|
||||||
|
Humidity
|
90%
|
||||||
|
Dimensions
|
203 x 133 x 63 mm
|
||||||
|
Weight
|
1 Kg
|
0.8 Kg
|
|||||
|
Certifications
|
CE & FCC
|
||||||
Brouchure: https://cdn1.npcdn.net/attachments/15984340420af13fd259011654fa8e50c31a31187f.pdf
