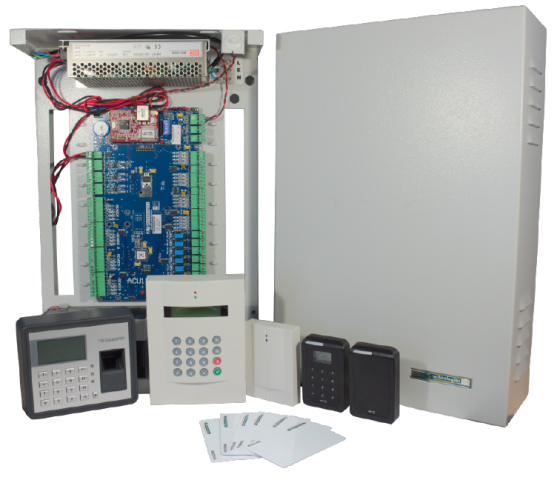

The ACU1000 is an intelligent, multi door controller suited for enterprise security. Its modular architecture and plug-n-play design makes it truly versatile. The ACU1000 can be used for door access, lift access and car park system. With advanced on board networking, the ACU1000 is the ideal solution for Ethernet LAN/WAN connectivity.

Fully scalable, the ACU1000 can operate as a standalone unit or with full networking of up to 2,048 access control readers and 45,000 input/output points.


Key Features

  • Support TCPIP protocol and RS485 network communication between controller and software
  • Detection automatic for each additional module with plug-able connectors , without software changes
  • Modular 4 reader boards with up to 176 input/output points
  • Modular 10A power supply unit with battery backup and automatic switchover
  • Built-in lighting/surge protection circuits
  • Supervised alarm input for open circuit and short circuit detection
  • Flash memory design for easy controller software upgrade
  • Support standard Wiegand format and RS485 interface for proximity, biometric & MIFARE readers
  • 100,000 cardholders and 200,000 events
  • Highly expandable from standalone unit up to 2048 access control reader and 45,000 input/output points
  • Multiple access groups (4 x 2048)
  • Interface to advanced Windows based user-friendly GUI software (IBSS2000)
  • Supports 4 byte / 8 byte CardID (RS485)
  • Supports up to 64bit CardID

Schematic Diagram




 Schematic Diagram


Technical Specifications

Specification* ACU1000MM ACU1000EM01 ACU1000EM02 ACU1000EM03
Description Main 4 door controller with 16 input/ 8 output Auxiliary 4 door controller with 16 input/ 8 output 32 Input Board 32 Output Board
Reader Type Proximity in Wiegand/ Contactless smartcard/ Biometric in RS485 - -
Card Holders 100,000 - - -
Event Buffer 200,000 - - -
Input Type Supervised/ Non supervised Supervised/ Non supervised Supervised/ Non supervised -
Output Type NC/NO/DC12V/1A NC/NO/DC12V/1A - NC/NO/DC12V/1A
Board Size (H x W) 285 x 155mm 225 x 100mm 225 x 100mm 225 x 100mm
LED Indicator Green & Red Green & Red Green & Red Green & Red
Communication Inter-face TCPIP, RS485 (Host)
& RS232 (Terminal)
RS485 (Dev Link) RS485 (Dev Link) RS485 (Dev Link)
Communication Speed 9,600 bps 9,600 bps 9,600 bps 9,600 bps
Reader Interface 4 units 4 units - -
Schedules 64 Max - - -
Access Modes Card ONLY, Card + pin Card ONLY, Card + pin - -
DC Input 12VDC 12VDC 12VDC 12VDC
AC Input 110 / 230VAC / 50 Hz / 1A 110 / 230VAC / 50 Hz / 1A 110 / 230VAC / 50 Hz / 1A 110 / 230VAC / 50 Hz / 1A
DC Power Supply Unit 13.8VDC / 10A Switchmode 13.8VDC / 10A Switchmode 13.8VDC / 10A Switchmode 13.8VDC / 10A Switchmode
Battery Backup   12VDC / 12AH sealed lead acid 12VDC / 12AH sealed lead acid 12VDC / 12AH sealed lead acid 12VDC / 12AH sealed lead acid
Operating Temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Modules ACU1000MM + up to 3 modules (EM01/EM02/ EM03) ACU1000MM + up to 3 modules (EM01/EM02/ EM03) ACU1000MM + up to 3 modules (EM01/EM02/ EM03) ACU1000MM + up to 3 modules (EM01/EM02/ EM03)
Enclosure Dimensions
(H x W x D)
390 x 330 x 130mm 390 x 330 x 130mm 390 x 330 x 130mm 390 x 330 x 130mm
Weight 8000g (without battery) / 11000g (with battery) 8000g (without battery) / 11000g (with battery) 8000g (without battery) / 11000g (with battery) 8000g (without battery) / 11000g (with battery)

Brouchure: ACU1000
