AMR170. NFC ASIS Contactless Smartcard Readers. #ASIP Connec

AMR170 NFC. ASIS Contactless Smartcard Readers. #ASIP Connect

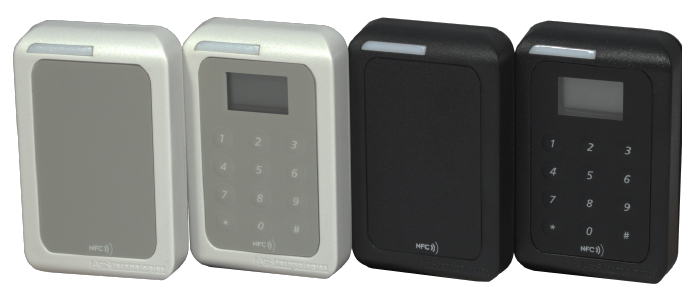

The AMR170 family of smartcard readers are designed with a fresh new look for a new generation of users. This family of readers embodies the latest Near Field Communication (NFC) technology, which supports the industry standard contactless smartcard operations in compliance with ISO 14443 Type A/B, FeliCa and CEPAS.

AMR170 family line includes various user interface options including a simple short-range reader only, a reader with keypad entry, and a full featured reader that comes complete with keypad and LCD.

Each reader is equipped with both RS485 and Wiegand communication interface for easy integration into a wide spectrum of applications, while allowing easy migration from any existing solution.


Key Features

  • Incorporates Near Field Communications (NFC) technology
  • Supports industry standard contactless smartcard (up to 64bit) in compliance with
  • ISO 14443 Type A (MIFARE STD, MIFARE UL, MIFARE DESFire)
  • ISO 14443 Type B (CEPAS – new EZLink and NETs card)
  • FeliCa (old EZLink card)
  • CEPAS
  • Graphics icon-based LCD display for language independent user friendly interface
  • Operational convenience with smartcard level security through contactless smart card technologies
  • Flexible data communications options with either RS485 or Wiegand communication interface
  • Positive audio-visual feedback to user operations provided by large tri-colored indicator and  multi-tone electronic buzzer
  • Modern & elegant designer casing to suit any décor

Technical Specifications

Specifications* AMR171W/R AMR175W/R
Description NFC Contactless Smartcard Reader NFC Contactless Smartcard Reader with keypad & LCD
Feature Read Card, PIN Read Card, PIN, Duress, Hold
PIN Duress Support No Yes
Read Range 2”/50mm 2”/50mm
Max Bit Length 64 64
Wiegand Bit Length Support 26, 32, 37, 40, 56, 80, 168 (ASIS) bits format and 8-digit 32, 37, 40
Communication Interface Wiegand, RS485
LED Indicator Green/ Red/ Amber Green/ Red/ Amber
Buzzer Multi-tone Multi-tone
LCD Display - 96 x 64 graphic LCD
Keypad - 3 x 4 keys
Termination 300mm pigtail cable 300mm pigtail cable
RS485 Support Addr 80H to 8FH (16 max) Addr 80H to 8FH (16 max)
Environmental Weatherproof Weatherproof
Mounting Hook-on bracket Hook-on bracket
Color Black / Warm Gray Black / Warm Gray
Input Voltage 12 – 24VDC 12 – 24VDC
Current Consumption 100mA at 12VDC max 200mA at 12VDC max
Dimensions (H x W x D) 95 x 60 x 16.5mm 95 x 60 x 16.5mm
Weight 200g 350g
Operating Temperature 0˚C to 50˚C 0˚C to 50˚C


AMR175 Reader Graphics

Access Grant         Door Locked
Access Denied       Fire Activated
Access Invalid       Box Tamper
Door Open Too Long        PIN Mode
Door Force Open     Pre-Alarm
Free Access


Brouchure: https://cdn1.npcdn.net/attachments/15978898500af13fd259011654fa8e50c31a31187f.pdf
