RG-ES05G. Ruijie 5-Port Gigabit Unmanaged Plastic Switch. #ASIP Connect

     Network/ICT System ---    RUIJIE    ---

Previous ‹‹ » Next

RG-ES05G. Ruijie 5-Port Gigabit Unmanaged Plastic Switch. #A

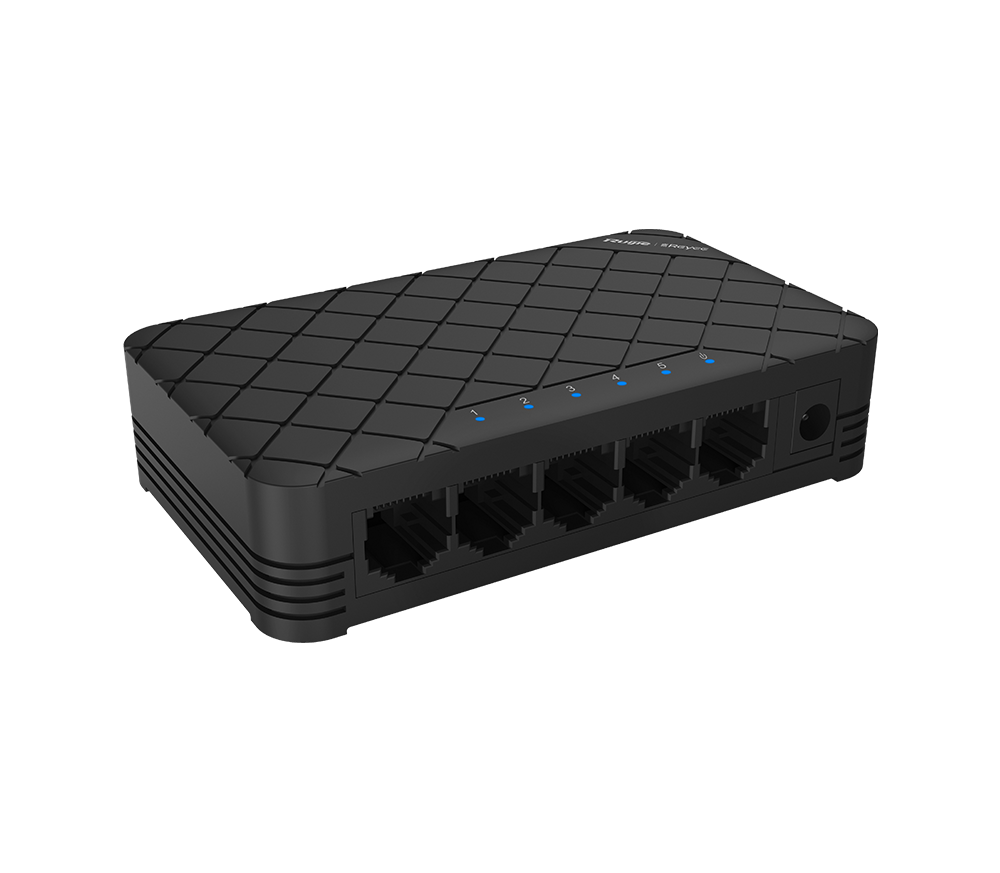

RG-ES05G. Ruijie 5-Port Gigabit Unmanaged Plastic Switch. #ASIP Connect

The perfect combination of quality, ease of use & cost effectiveness

Ruijie Reyee Series Plastic Switch is a desktop switch tailored for small enterprises, small-scale surveillance and SOHO, which consists a total of 4 different models to meet the network needs of small enterprise customers. The switches feature plug and play, zero configuration and compatibility with a variety of terminals such as network cameras, printers, PCs, etc., to offer fast deployment experience.

Model

RG-ES05

RG-ES05G



Ports

5 10/100M Base-T ports

5 10/100/1000M Base-T ports



Operating mode

Half-duplex, full-duplex, auto-negotiation mode

Support auto MDI/MDIX



Backplane bandwidth

1Gbps

16Gbps



Packet forwarding rate

10Mbps:14880pps 100Mbps:148800pps

10Mbps:14880pps    100Mbps:148800pps    1000Mbps:1488000pps





MAC address

1K

2K



Power supply

External, DC 5.0V / 600mA

External, DC 5.0V / 600mA



Maximum power consumption

≤2.5W

≤2.5W



Fan

Fanless

Fanless



Dimensions

108.1mm*64mm*24.8mm

108.1mm*64mm*24.8mm



Temperature

Operating temperature: 0 ~ 40

Storage temperature: -40 ~ 70



Humidity

Operating humidity: 10% ~ 90% RH

Storage humidity: 5% ~ 95% RH
