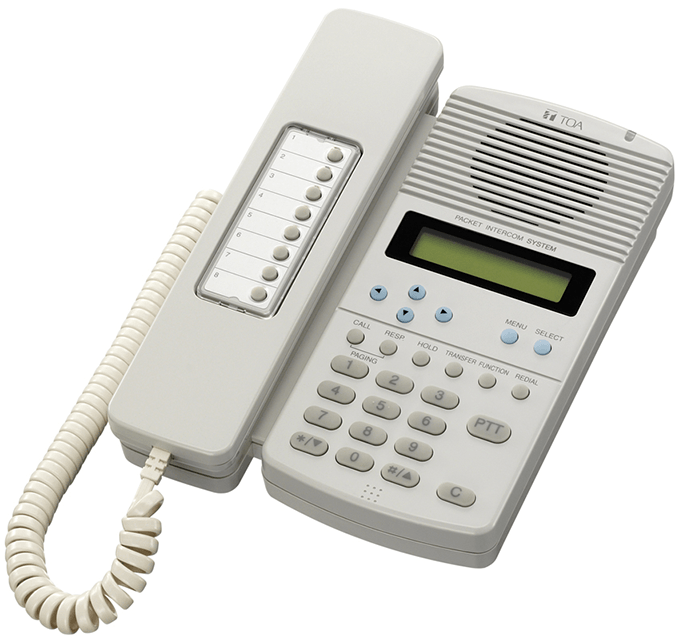

N-8000MS. TOA Multifunctional Master Station. #ASIP Connect

N-8000MS. TOA Multifunctional Master Station. #ASIP Connect

This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free or handset conversation of high sound quality. In addition to the functions of the standard Master Station, the Multifunctional Master Station provides LCD display, Auto-dialer function enabling one-touch dialing, headset terminal and external speaker terminal. This station can be mounted to the wall using an optional YC-280 wall mounting bracket.

Power Source 48 V DC (supplied from the IP intercom exchange (option))
Power Consumption 1.8 W (at rated), 2.4 W (max.)
Wiring Method 1 set of twisted pair cable
Transmission System 2 wire 160 kbps echo canceller transmission system
Signal Level Under 0 dB*
Speech Method Hands-free or handset conversation
Audio Frequency Range 300 Hz - 7 kHz
Transmission Range Max. 1500 m (φ0.65 mm, Loop resistance 170 Ω)
Hands-free Speaker: 5.7 cm cone-type, 0.6 W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Handset Receive path: Dynamic type
Send path: Electret condenser microphone
Display LCD: Alphanumeric characters (16 characters × 2 lines)
Indication Status lamp
Line Connecting Terminal RJ11 modular jack
Headset Terminal Speaker: 3 mW, 32 Ω, Microphone: -49 dB*, φ3.5 mm mini Jack
External Speaker Terminal 0.6 W, 8 Ω, screwless connector (2 pins)
Installation Method Desk/Surface mounted master station
(When mounting to the wall, use the optional YC-280.)
Operating Temperature 0 to +40
Operating Humidity Under 90 % RH (no condensation)
Finish Body, Handset: ABS resin, gray
Dimensions 148 (W) x 208 (H) x 70.5 (D) mm (excluding a curl cord section)
Weight 800 g
Accessory Connection cord (3 m) …1
Option Wall mounting bracket: YC-280


Brouchure: https://cdn1.npcdn.net/attachments/15966009750af13fd259011654fa8e50c31a31187f.pdf
