WG-D120R. TOA Digital Wireless Guide Receiver (Dual). #ASIP Connect

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

WG-D120R. TOA Digital Wireless Guide Receiver (Dual). #ASIP

WG-D120R. TOA Digital Wireless Guide Receiver (Dual). #ASIP Connect

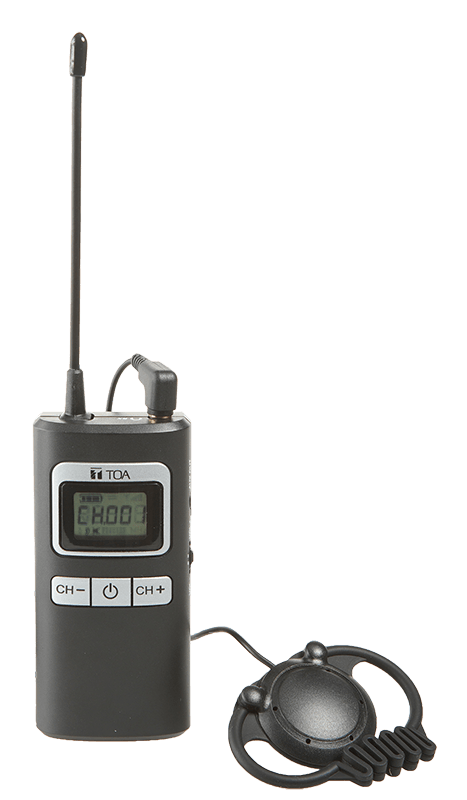

WG-D120R Two-way digital wireless guide provides crystal clear sound without interruption, ensuring clear audio transmission at all time. Uses single AA battery with rechargeable options. Recording of content is possible by connecting recorder to the AUX output of the receiver.

Frequency 510 - 530 MHz
Modulation GFSK
Audio Sampling 8 kHz 16 bit
Latency 35 ms
Frequency Response 65 Hz - 3.8 kHz
Dynamic Range > 80 dB
Signal to Noise > 60 dB
THD at 1kHz < 5.2 %
Service Coverage Indoor: 100 m / Outdoor: > 150 m
Operating Temperature -10 °C - 50 °C
RF Output Power 10 mW
Receiver Sensitivity - 88 dBm
3.5mm Phone Jack Earphone output x 1 (32Ω) / AUX out x 1 (0Ω)
Microphone Source Built-In
Front + & - Buttons Channel Selector
Power Button Power On / Off
Side Momentary 3way Tact Switch + : Volume Up
Center Push: Push to Talk
- : Volume Down
Battery Life Approx. 14 hours (data measured using 1 x AA NiMH 2600 mAh rechargeable battery)
Battery Ni-MH type ''AA'' 1.2V x 1 / Alkaline ''AA'' 1.5V x 1
Charging Source DC 5V Micro USB
Charging Time Depends on battery type and capacity
Charging Current 255 ± 10 mA
LCD Display Channel, Battery Indicator, Volume, 2-way Communication Indicator, Signal Strength
Antenna Whip / Helical
Regulatory Compliance CE FCC
Color Silver Frame
Dimensions 40 (W) × 83.5 (H) × 24.6 (D) mm, Antenna length not included
Weight 38.6 g (battery not included)
Accessory Earphone x 1, Belt Clip x 1, Lanyard (Red) x 1, Universal USB Adapter x 1, USB Cable x 1


Brouchure: https://cdn1.npcdn.net/attachments/15960740010af13fd259011654fa8e50c31a31187f.pdf
