WG-D100T. TOA Digital Wireless Guide Receiver. #ASIP Connect
WG-D100T One-way digital wireless guide provides crystal clear sound without interruption, ensuring clear audio transmission at all time. Uses single AA battery with rechargeable options. Individual mic input and AUX input on transmitter. Connection of multimedia device to AUX input of transmitter to transmit media content to receivers is possible
| Frequency | 510 - 530 MHz, 803.3 - 805.7 MHz |
|---|---|
| Modulation | GFSK |
| Audio Sampling | 8 kHz 16 bit |
| Latency | 22 ms |
| Frequency Response | 65 Hz - 3.8 kHz |
| Dynamic Range | > 80 dB |
| Signal to Noise | > 70 dB |
| THD at 1kHz | < 1.5 % |
| Service Coverage | Indoor: 100 m / Outdoor: > 150 m |
| Operating Temperature | -10 °C - 50 °C |
| RF Output Power | 10 mW |
| 3.5mm Phone Jack | Mic In x 1 / AUX In x 1 |
| Microphone Source | Built-in & External |
| Input Level | Mic: -35.5 dBV / AUX: -25 dBV |
| Front + & - Buttons | Channel Selector |
| Power Button | Power On / Off and Mute |
| Side Momentary 3way Tact Switch | + : Volume Up |
| Center Push: Corresponding Frequency | |
| - : Volume Down | |
| Battery Life | Approx. 12 hours (data measured using 1 x AA NiMH 2600 mAh rechargeable battery) |

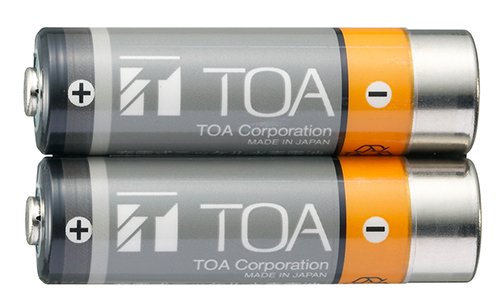

| Battery | Ni-MH type ''AA'' 1.2V x 1 / Alkaline ''AA'' 1.5V x 1 |
| Charging Source | DC 5V Micro USB |
| Charging Time | Depends on battery type and capacity |
| Charging Current | 255 ± 10 mA |
| LCD Display | Channel, Battery Indicator, Volume, Signal Strength |
| Antenna | Whip |
| Regulatory Compliance | CE FCC |
| Color | Black Frame |
| Dimensions | 40 (W) × 83.5 (H) × 24.6 (D) mm, Antenna length not included |
| Weight | 38.6 g (battery not included) |
| Accessory |
Lapel Mic x 1, Belt Clip x 1, Lanyard (Black) x 1, Universal USB Adapter x 1, USB Cable x 1 |
Brouchure: https://cdn1.npcdn.net/attachments/15960159690af13fd259011654fa8e50c31a31187f.pdf
