WS-420. TOA Single Channel Wireless Set. #ASIP Connect

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

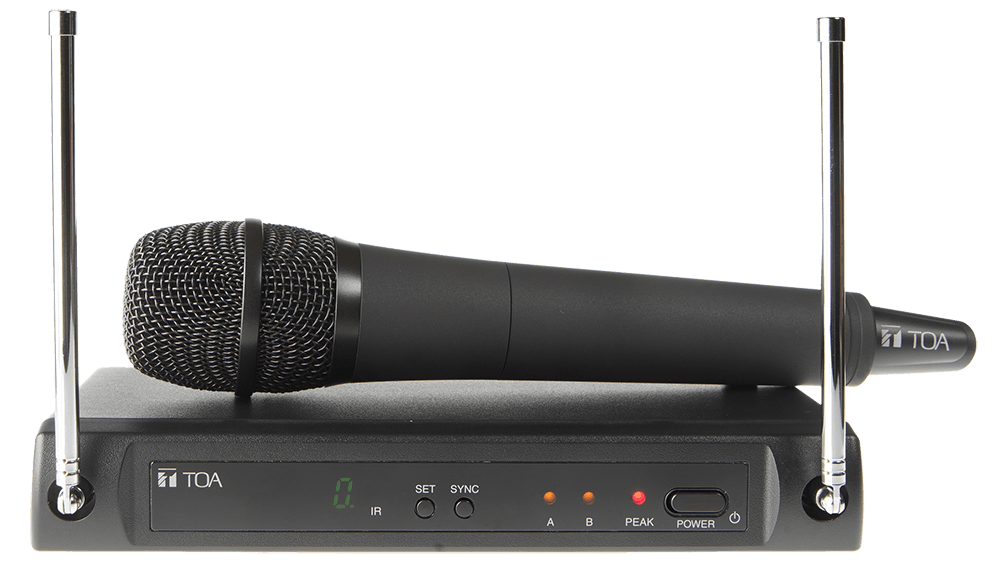

WS-420. TOA Single Channel Wireless Set. #ASIP Connect

WS-420. TOA Single Channel Wireless Set. #ASIP Connect

The WS-420 is a single channel wireless set. The simplest plug and play system, designed to launch you in to the world of wireless. It's rugged and compact frames hold a reliable multifunctioning system that is optimised for use with a range of microphones from handheld, to lapels, to headsets or alternatively can be used with a musical instrument.

Product Composition Handheld wireless microphone x 1
Receiver x 1
Frequency Range 633 - 671MHz, 803 - 806 MHz, UHF
Channel Selectable 4 channels
Tunable Frequencies 25 kHz Steps
Pilot Tone 32.768 kHz
Total Harmonic Distortion <1% @ 1kHz
Function IR sync, Channel scan, Battery indicator
Accessory AC adapter x 1
Microphone holder x 1

Wireless Microphone
Microphone Element Dynamic with cardioid pattern
RF Carrier Power 10 mW
Audio Frequency Response 80 - 15,000 Hz
Audio Input Level 140 dB SPL (Maximum)
Modulation System PLL synthesizer
Battery 1 AA size alkaline battery, 1.5V
Battery Life Approx. 10 hours
Indicator Battery Status LED, 7 Segments LED
Finish Resin, coating
Dimensions Approx. 250 x 50 mm
Weight Approx. 245 g (with battery)

Wireless Receiver
Diversity Reception AC mains (supplied AC-DC adapter must be used)
Sensitivity 10uV at 45dBA S/N
Squelch (SQ) Tone SQ, Carrier SQ and Noise SQ
Audio Frequency Response 50 - 15,000Hz
Audio Output Level (Maximum) Balanced (XLR socket): -20dBu
Unbalanced (1/4'' jack socket): 10dBu
Power Supply 11-18 VDC 300mA
Dimensions 215 (W) × 39 (H) × 102 (D) mm (excluding antenna and BNC)
Weight 480 g


Brouchure: WS-420
