Plato-DF800KLS/ Plato-DF800S. MicroEngine DesFire Plato Readers. #ASIP Connect

     Door Access System ---    MICROENGINE    ---

Previous ‹‹ » Next

Plato-DF800KLS/ Plato-DF800S. MicroEngine DesFire Plato Read

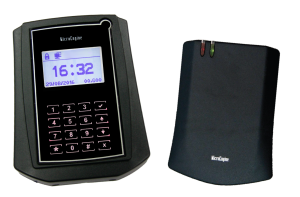

Plato-DF800KLS/ Plato-DF800S. MicroEngine DesFire Plato Readers. #ASIP Connect

  • Encrypted Serial RS485
  • High Security (64 bits Card ID + 64 bits CSN)
  • Touch Sense Keypad & LCD
  • 32 bit Processor for Faster Reading
  • Built In Tamper Switch
No Features DF800S DF800KLS
1. Card Type Mifare DesFire / DesFire Ev1
2. Encrypted Card ID Yes. (In Encrypted File Securedly Created in the Card)
3. Encrypted Reading Yes
4. Card Serial Number (CSN) Yes. Read Together with Card ID
5. RS485 to Controller Yes. Encrypted. (Not Unsecured Wiegand Type)
6. Processor 32 bit RISC for Faster Response Time
7. Tamper Switch Yes. (High Endurance Optical Type)
8. Beeper Indicator Yes
9. Keypad Yes
High Sensitivity Touch Sense
No
10. LCD Yes (Graphic) No
11. Dimension 131mm x 100mm x 30mm 120mm x 90mm x 28 mm

configuration-diagram

Brouchure: https://cdn1.npcdn.net/attachments/15952395590af13fd259011654fa8e50c31a31187f.pdf
