SR-L09. TOA Subwoofer System. #ASIP Connect

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

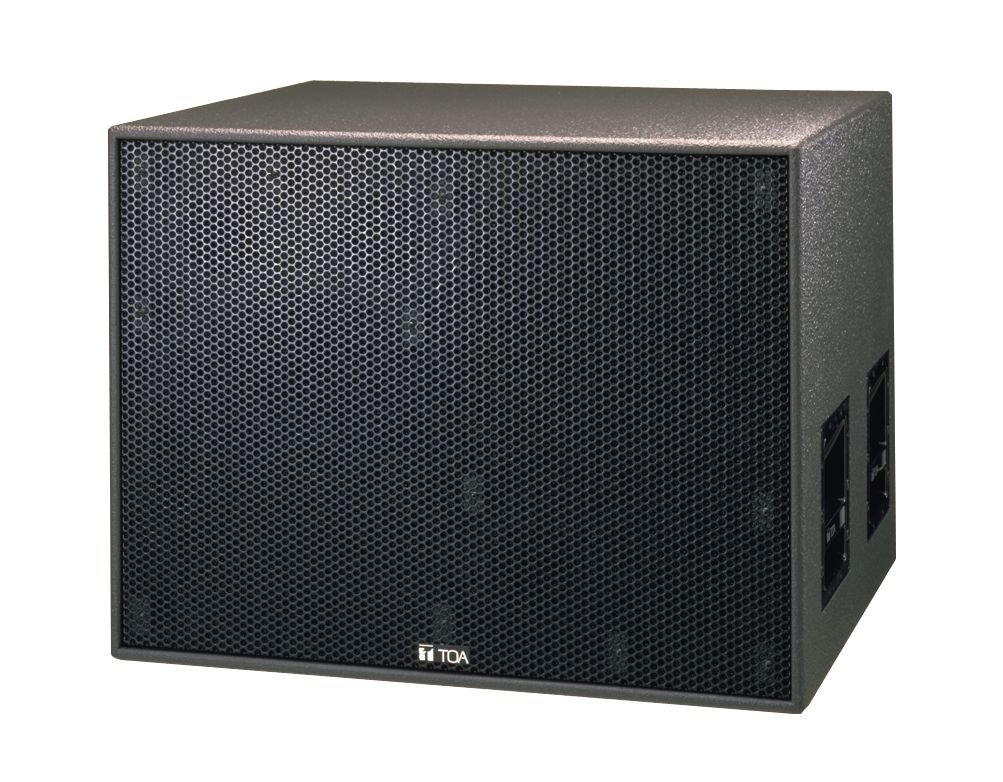

SR-L09. TOA Subwoofer System. #ASIP Connect

SR-L09. TOA Subwoofer System. #ASIP Connect

Featuring high power, high quality and rugged construction, the SR-L09 is a subwoofer system that can be used for on-the-road applications as well as permanent installation.


Enclosure Bass-reflex type
Power Handling Capacity 900 W (continuous program)
300 W (continuous pink noise)
Rated Impedance 4 Ω
Sensitivity 96 dB (1 W, 1 m)
Frequency Response 35 Hz - 1 kHz
Crossover Frequency 125 Hz (when recommended parameters are applied by the optional DP-SP3)
Speaker Component Low frequency: 38 cm cone-type x 2
Input Connector Neutrik NL4MP and M5 screw terminal, distance between barriers: 12.2 mm
Finish Enclosure: Plywood, black, paint
Front grille: Steel plate, black, acrylic paint
Dimensions 829 (W) × 629 (H) × 606 (D) mm
Weight 67 kg
