PA/Sound System --- TOA ---
| Previous ‹‹ | » Next |

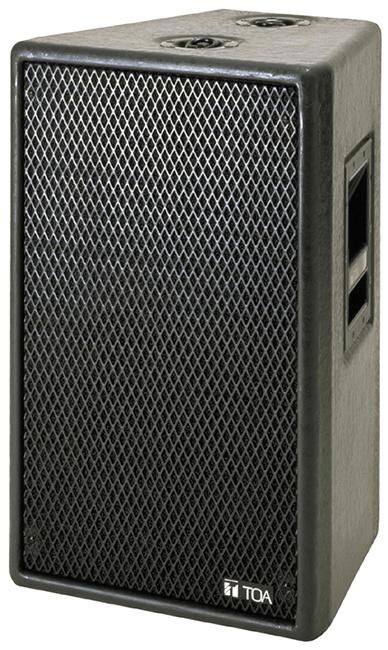

SR-F1D. TOA Speaker System. #ASIP Connect
The SR-F1D is compact integrated speaker system for use in sound reinforcement applications with an emphasis on quality sound and durability, and for easy transportation. Recommended digital speaker processor is the DP-SP3 (option).
| Enclosure | Bass-reflex type |
|---|---|
| Power HandlingCapacity |
Continuous pinknoise: 120 W (Low frequency)(*1), 80 W (High frequency)(*2) Continuous program: 360 W (Low frequency), 240 W (High frequency) |
| Rated Impedance | Low frequency: 8 Ω, High frequency: 16 Ω |
| Sensitivity | Low frequency: 98 dB (1 W, 1 m), High frequency: 110 dB (1 W, 1 m) |
| Frequency Response | 70 Hz - 20 kHz (when recommended parameters are applied by the optional DP-SP3) |
| Crossover Frequency | 1 kHz (when recommended parameters are applied by the optional DP-SP3) |
| Speaker Component |
Low frequency: One 30 cm dia cone-type High frequency: CD horn (60©b horizontal by 40©b vertical) plus compression driver |
| Input Connector | Neutrik NL4MPR |
| Finish |
Enclosure: urethane coating, gray Front grille: Black, paint |
| Dimensions | 390 (W) × 619 (H) × 364 (D) mm |
| Weight |
38 kg |
