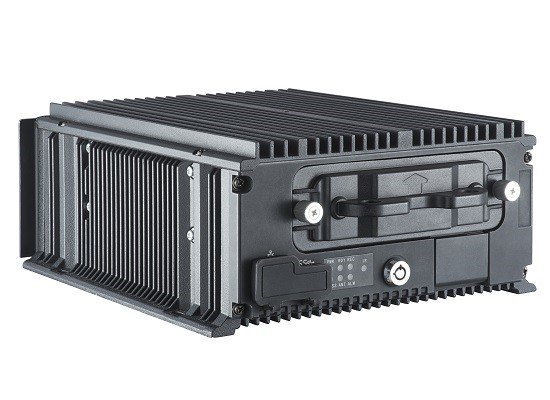

DS-MP7608. Hikvision 8-ch 1080p, H.265, 2 x HDD/SSD Mobile DVR. #ASIP Connect
- 8-ch 1080p analog cameras + 8-ch 1080p IP cameras (requires PoE switch)
- H.265
- 2×2.5 inch HDDs/SSDs(2TB for each), 1×SD(256GB)
- Pluggable 3G/4G, Wi-Fi module, and built-in GPS module
- Video/Audio Input
- Analog Camera8 TVI cameras, up to 1080p resolution
- IP Camera8 IP cameras, extendable via PoE switch
- Two-Way Audio1, integrated in EXT.DEV interface
- Storage
- HDD/SSD2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD
- SD Card1 × SD card slot, up to 256 GB
- Positioning
- GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 × Rosenberger antenna
- General
- Working TemperatureDevice that provides dummy HDD with heating function: ,-30 °C to +60 °C (-22 °F to +140°F),Other devices: ,-10 °C to +60 °C (+14 °F to +140°F),
- Working Humidity10% to 95%
- Power Supply9 to 32 VDC
- ConsumptionStandby: ≤ 0.5 W,Full load: ≤ 99 W,Note: Without peripheral and storage media: ≤ 20 W,
- Operating MethodMouse, IR remote control, and Web control
- Dimensions (W × D × H)202 × 267.6 × 93.9 mm ( 7.95 × 10.53 × 3.7 inch)
- Weight (Without Storage Media)3 .66 kg (8.07 lb)
- G-Sensor
- G-SensorBuilt-in
- Video/Audio Output
- Video OutputCVBS: 2 ,VGA: 1,
- Encoding/Decoding Parameters
- Video CompressionH.264/H.265
- Encoding ResolutionMain stream: 1080/720/WD1/4CIF,Sub-Stream: 4CIF/2CIF/CIF,
- Frame RatePAL: 1 to 25 fps, NTSC: 1 to 30 fps
- Audio CompressionG.711/G.722.1
- Stream TypeVideo, video & audio
- Audio Bitrate16 Kbps
- Dual StreamSupported
- Wireless Network
- 3G/4G Dialing1 × 3G/4G card slot, 1 × Rosenberger antenna
- Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna,WI model: 1 × 2.4 G Wi-Fi SMA antenna
- External Interface
- Network Interface1 × RJ45 10M/100M self-adaptive Ethernet interface
- Serial Port3 × RS-232, 2 × RS-485, 1 × RS-422
- USB InterfaceFront panel: 2 × standard USB 2.0 and 1 × A-type USB 3.0,Rear panel: 1 × USB 2.0 (5-pin aviation connector)
- CAN Interface2
- Sensor-In4 high/low level signal inputs, 1 pulse signal input
- Alarm Input4 high/low level signal inputs
- Alarm Output2 relay signal outputs
