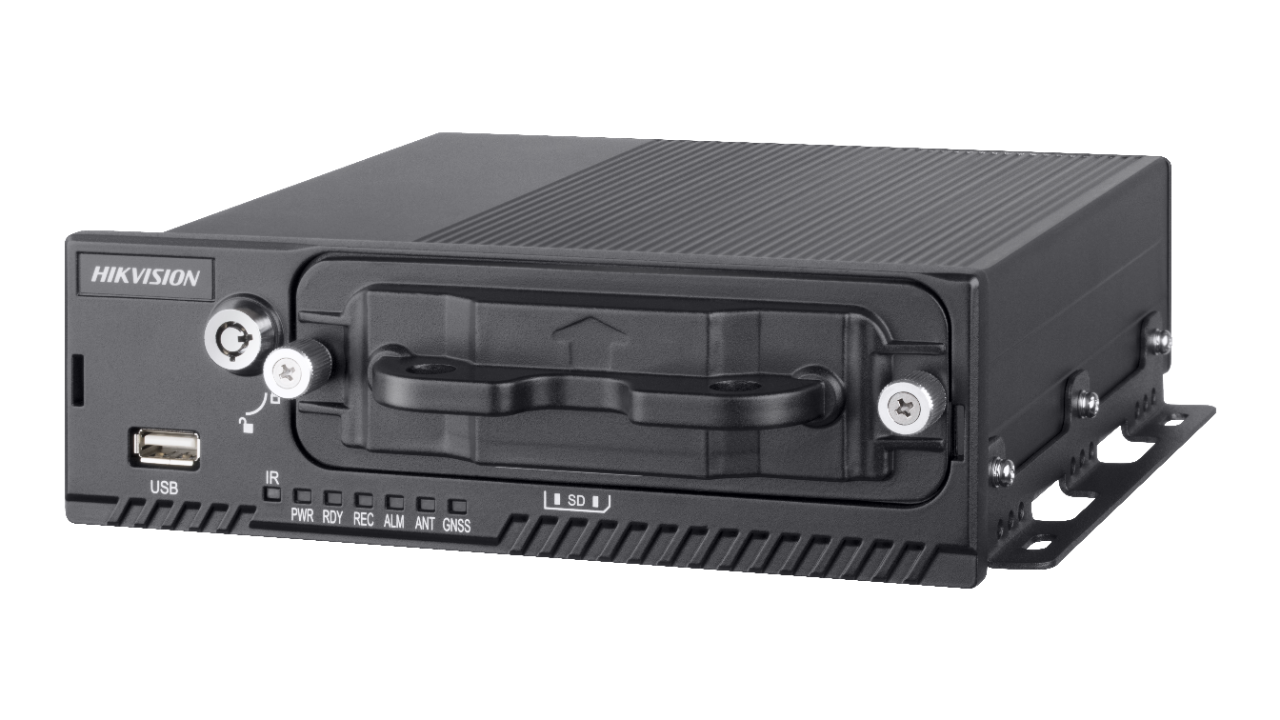

DS-MP5604. Hikvision 4-ch 1080p, H.265, 1xHDD/SSD Mobile DVR. #ASIP Connect
- 4-ch 1080p analog cameras + 4-ch 1080p IP cameras (requires PoE switch)
- H.265
- 1×2.5 inch HDD/SSD(2TB), 1×SD(256GB)
- Pluggable 3G/4G, Wi-Fi module, and built-in GPS module
- Video/Audio Input
- Analog Camera4 analog cameras, up to 1080p resolution
- IP Camera4 IP cameras, up to 1080p resolution (extendable via PoE switch)
- Two-Way Audio1, integrated in EXT.DEV interface
- Storage
- HDD/SSD1 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD£»A dummy HDD with USB 3.0 interface
- SD Card1 × SD card, up to 256 GB
- General
- Working TemperatureDevice that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to +140°F) Other devices: -10 °C to +60 °C (+14 °F to +140°F)
- Working Humidity10% to 95%
- Power Supply9 to 32 VDC
- ConsumptionStandby: ≤ 0.5 W Full load: ≤ 45 W Note: Without peripheral and storage media ≤ 20 W
- Operating MethodMouse, IR remote control, Web control, and touchscreen
- Dimensions (W × D × H)206 × 225.4 × 60.1 mm (8.1 × 8.87 × 2.37 inch)
- Weight (Without Storage Media)1.7 kg (3.7 lb)
- Positioning
- GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 × Rosenberger antenna
- Video/Audio Output
- Video OutputMain output: 1, integrated in EXT.DEV interface VGA: 1
- Audio Output1
- Encoding/Decoding Parameters
- Video CompressionH.264/H.265
- Encoding ResolutionMain stream: 1080p/720p/WD1/4CIF£»Sub-stream: 720P/WD1/4CIF/2CIF/CIF
- Frame RatePAL: 1 to 15 fps@1080P; NTSC: 1 to 15 fps@1080P; PAL: 1 to 25 fps@720P; NTSC: 1 to 30 fps@720P
- Audio CompressionG.711/G.722.1
- Stream TypeVideo, video & audio
- Audio Bitrate16 Kbps
- Dual StreamSupported
- Wireless Network
- 3G/4G Dialing1 × 3G/4G card slot, 1 × Rosenberger antenna
- Wi-FiWI58 model: 2 × 5.8 G Wi-Fi SMA antenna
- External Interface
- Network Interface1 × 10M/100M M12 6-pin aviation connector
- Serial Port2 × RS-232, 1 × RS-422 (integrated in EXT.DEV interface)
- USB InterfaceFront panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector)
- Sensor-In4 high/low level signal inputs
- Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
- Alarm Output2 relay signal outputs
