PC-2360. TOA Ceiling Mount Speaker. #ASIP Connect

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

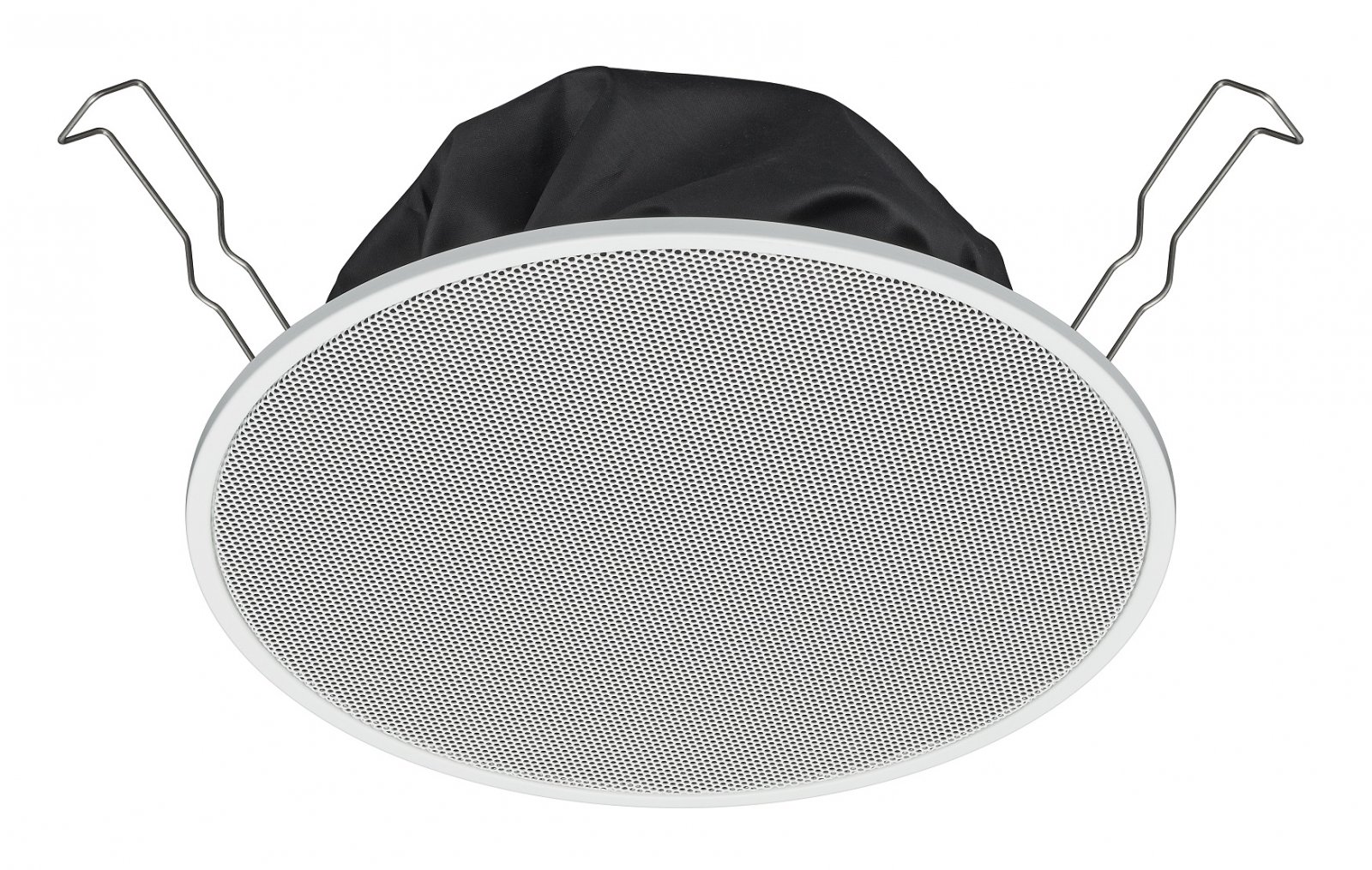

PC-2360. TOA Ceiling Mount Speaker. #ASIP Connect

PC-2360. TOA Ceiling Mount Speaker. #ASIP Connect

All metallic construction, ideal for use in a voice alarm system or BGM system. It feature spring clamp mechanism for easy mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer. The push-in type input terminal block makes cable connection easy and allow bridge wiring.

Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
Frequency Response 60 Hz - 20 kHz (peak -20 dB)
Speaker Component 16 cm (6'') cone-type
Operating Temperature -10 °C to + 50 °C (14 °F to 122 °F)
Dimensions for Fixing Hole Mounting hole: φ200±3 mm (φ7.87''±0.12'')
Ceiling thickness: 5 - 25 mm (0.2'' - 0.98'')
Speaker Mounting Method Spring clamp
Applicable Cable Solid wire: 0.5 - 3 mm² (AWG 20 - 12)
Connection Push wire connection (bridging terminal-2 branch type)
Finish Frame: Steel plate, white (RAL 9016 equivalent), paint
Grille: Steel net, white (RAL 9016 equivalent), paint
Dimensions φ230 × 76 (D) mm (φ9.06'' × 2.99'')
Weight 740 g (1.63 lb)
Accessory Paper pattern …1


Brouchure: https://cdn1.npcdn.net/attachments/15928996160af13fd259011654fa8e50c31a31187f.pdf
