FV-200CA. TOA Amplifier Changeover Panel. #ASIP Connect

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

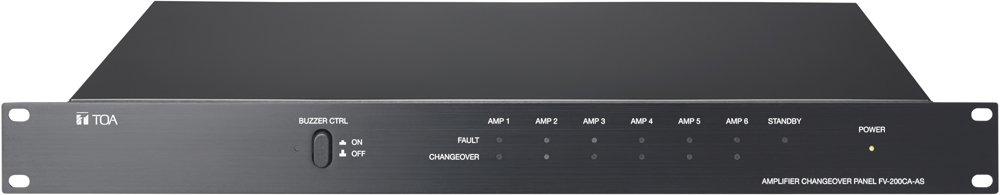

FV-200CA. TOA Amplifier Changeover Panel. #ASIP Connect

FV-200CA. TOA Amplifier Changeover Panel. #ASIP Connect

The FV-200CA Amplifier Changeover Panel is used to automatically changeover FV-200 Series fault duty amplifier to working standby amplifier. 1 unit of FV-200CA can handle up to 6 nos. of FV-200 Series amplifiers.


Power Source 24 V DC (operating range: 21.6 - 26.4 V), M3 screw terminal
Current Consumption 240 mA
No. of Input Channel 6 Duty Amplifier, 1 Standby Amplifier
No. of Output Channel 6 Output
Failure Detection Fault Buzzer with buzzer control switch
Display Power (Green), Changover (Orange), Fault / Buzzer Control (Red)
Operating Temperature 0 to +40
Operating Humidity Under 90% RH (no condensation)
Finish Front Panel : Aluminum, black, alumite
Dimensions 482 (W) × 44 (H) × 343.8 (D) mm
Weight 2.6 kg
Accessory Removable terminal plug (2  pins) x 3, removable terminal plug (8 pins) x 4


Brouchure: https://cdn1.npcdn.net/attachments/15925421640af13fd259011654fa8e50c31a31187f.pdf
