VX-3150DS. TOA Power Supply Manager. #ASIP Connect

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

VX-3150DS. TOA Power Supply Manager. #ASIP Connect

VX-3150DS. TOA Power Supply Manager. #ASIP Connect

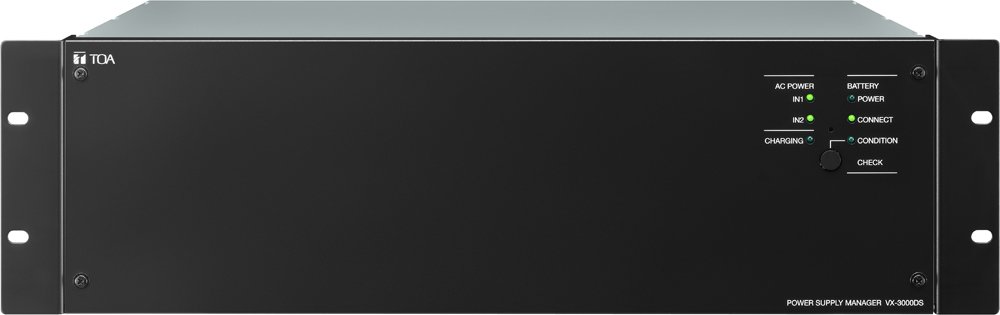

The VX-3150DS is an Emergency Power Supply Manager used for the VX-3000, SX-2000, VX-2000 and VM-3000 systems. It is a 3U rack-mount unit equipped with a battery charger and a switching power supply, which contribute to rack space, energy-saving and lightweight design. The VX-3150DS features easy maintenance as function setting switch and shutdown switch inside the front panel, and fuse replacement can be performed on the unit's rear side.

Power Source 220-230 V AC, 50/60 Hz
Power Consumption 1460 W max in total (at rated output with charging)
DC Power Output (AC mode) Rated output: 1140 W (total DC power output)
Peak output: 1280 W (total DC power output)
Current Specification Maximum output current from the battery: 25 A
Rated maximum continuous output current, I max. a: 25 A
Rated maximum short duration output current, I max. b: 25 A
Rated minimum output current, I min: 0 A
Ripple Voltage at I max. b: 4 V max
DC Power Output 8 x 31 V (19-33 V) 25 A max. each, M4 screw terminal,
distance between barriers: 11 mm (0.43'')
3 x 31 V (19-33 V) 5 A max. each, removable terminal block (3 × 2 pins)
1 x 24 V (16-25 V) 0.3 A max., removable terminal block (1 × 2 pins)
Charging Method Temperature compensated trickle charging
Charging Output Voltage 27.3 V ±0.3 V (at 25 (77 bF))
Temperature correction coefficient: -40 mV/
Battery Connection 1 pair of positive and negative terminals
Applicatble cable diameter: AWG 6 - AWG 0 (AWG 1/0) (16 mm² - 50 mm²)
Line resistance within 4m Ω/total
Applicable Battery Panasonic: LC-X1265PG/APG (65 Ah), LC-XA12100P (100 Ah)
Yuasa: NP65-12 (65 Ah), NPL100-12 (100 Ah)
Control Connector DS LINK IN/OUT RJ45 female connector for connecting the system and cascade connection
Shielded Twisted-pair straight cable (TIA/EIA-568A standard)
Type of control signal: Battery check, AC power status, DC Power status, charging circuit failure, battery failure, and communication
Panel Indicator AC power IN (Green), Charging (Green), Battery power (Green), Battery connect (Green), Battery condition (Green)
Operating Temperature -5 to +45 (23 bF to 113 bF)
Operating Humidity 90 %RH or less (no condensation)
Finish Panel: Surface-treated steel plate, black, 30% gloss, paint
Dimensions 482 (W) x 132.6 (H) x 400.5 (D) mm (18.98'' × 5.22'' × 15.77'')
Weight 9.0 kg (19.84 lb)
Accessory Fuse (T8A H) …1, Fuse (T6.3A L) …2, Blade fuse (35 A) …2,
Rack mounting screw (with washer) …4, Power cord (2 m (6.56 ft)) …2,
Fastener hook …4, Fastener loop …4, Thermal insulating sheet …1,
CAT5-STP cable (3 m (9.84 ft)) …1, Ferrite clamp …1
Fuse Rating Blade fuse (35 A), Fuse (T8A H), Fuse (T6.3A L)


Brouchure: https://cdn1.npcdn.net/attachments/15920237870af13fd259011654fa8e50c31a31187f.pdf
