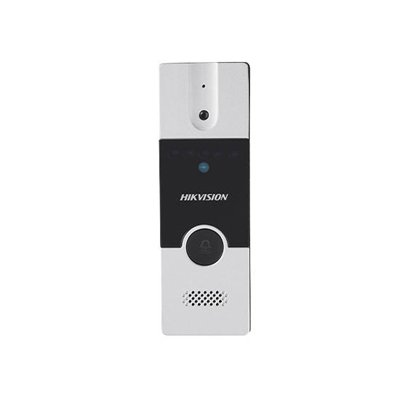

DS-KB2411. Hikvision Analog Four Wire Door Station. #ASIP Connect

     Intercom System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-KB2411. Hikvision Analog Four Wire Door Station. #ASIP Co

DS-KB2411. Hikvision Analog Four Wire Door Station. #ASIP Connect

  • Four wire (analog) door station
  • Pinhole camera with IR supplement
  • Metal frame with one physical button
  • Supports Two Door Stations Cascading
  • Selection Parameter
  • Ingress Protection LevelIP65
  • General
  • Power Supply12 VDC
  • Power Consumption≤5 W
  • Working Temperature’-10° C to + 55° C (14° F to 131° F)
  • Working Humidity10% to 90%
  • Dimensions (L X W X H)195.8 mm × 132.8 mm × 18.39 mm (7.7'' × 5.2'' ×0.7'')
  • MaterialAluminum Alloy
  • Device Interfaces
  • Four-Wire Interface1 Four-Wire Interface (1-ch Video Input, 1-ch Audio,Input/Output, 1-ch Power Supply, 1-ch Grounding)
  • I/O Output1 Relay Output
  • Audio Parameters
  • Audio InputBuilt-in Omnidirectional Microphone
  • Audio OutputBuilt-in Loudspeaker
  • Audio QualityNoise Suppression and Echo Cancellation
  • Device Interfaces
  • Four-Wire Interface1 Four-Wire Interface (1-ch Video Input, 1-ch Audio,Input/Output, 1-ch Power Supply, 1-ch Grounding)
  • I/O Output1 Relay Output
  • Light Supplement
  • Light Supplement ModePhotosensitive IR Supplement, IR Range: 2 Meters
  • Video Parameters
  • Camera1/4'' CMOS
  • Resolution720 × 576
  • Video Frame RatePAL: 25 fps
Brouchure: https://cdn1.npcdn.net/attachments/15916692230af13fd259011654fa8e50c31a31187f.pdf
