DS-2CV2U32G1-IW. Hikvision 3 MP Indoor Audio Fixed Cube Network Camera. #ASIP Connect

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CV2U32G1-IW. Hikvision 3 MP Indoor Audio Fixed Cube Netw

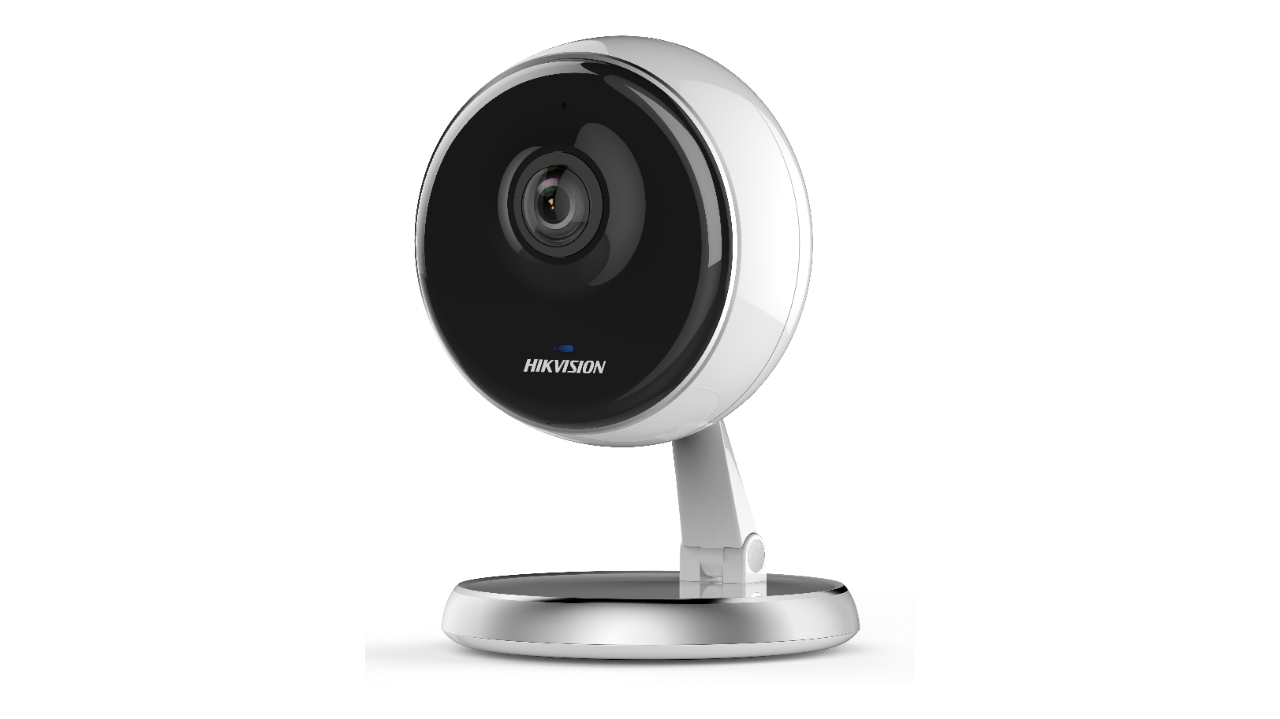

DS-2CV2U32G1-IW. Hikvision 3 MP Indoor Audio Fixed Cube Network Camera. #ASIP Connect

  • High quality imaging with 3 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120dB WDR
  • Up to 128 GB SD card slot for storage
  • Provides real-time security via two-way audio
  • Wi-Fi connection and easy installation
  • Hik-Connect cloud service and app for remote management and viewing of devices
  • 180° FOV for wider monitoring
  • Camera
  • Image Sensor1/3'' Progressive Scan CMOS
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR, ,Color: 0.028Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic Range120dB
  • DNR3D DNR
  • Axis AdjustmentPan: 0° to 360°, tilt: -75° to 65°, rotate: 0° to 360°
  • Lens
  • Focal Length1.68 mm
  • ApertureF2.0
  • FOVHorizontal field of view: 180°, Vertical field of view: 85°
  • Lens MountM12
  • Illuminator
  • IR RangeUp to 10 m
  • Wavelength850nm
  • Network
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Protocols802.11b: DQPSK, DBPSK, CCK,802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200
  • Video
  • Max. Resolution2304 × 1296
  • Main Stream50Hz: 20fps (2304 × 1296), 25fps (1920 × 1080, 1280 × 720),60Hz: 20fps (2304 × 1296), 30fps (1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps(640 × 360, 480 × 272, 432 × 240),60Hz: 30fps(640 × 360, 480 × 272, 432 × 240)
  • Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • SVCSupport H.264 and H.265 encoding
  • Audio
  • Audio CompressionG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Environment Noise FilteringYes
  • Audio Sampling Rate16 kHz, 32kHz, 44.1kHz, 48kHz
  • Smart Feature-Set
  • Region Of InterestSupport 1 fixed region for main stream and sub-stream separately
  • Image
  • Image EnhancementBLC/3D DNR
  • Image SettingSaturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Day/Night SwitchAuto/Schedule
  • Wi-Fi
  • Wireless StandardsIEEE 802.11b/g/n
  • Frequency2.412 GHz to 2.4835 GHz
  • Channel Bandwidth20M/40M
  • SecurityWPA, WPA2
  • Transfer Rate11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
  • Wireless Range50 m
  • Interface
  • Audio1 built-in mic, 1 built-in speaker, two-way audio, mono sound
  • On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • General
  • General FunctionOne-key reset, anti-flicker, dual streams, heartbeat, password protection, privacy mask, watermark
  • ResetYes
  • Startup And Operating Conditions-10 °C to +40 °C (14°F to +104 °F), Humidity 95% or less (non-condensing)
  • Power Supply5 VDC ± 10%, micro USB
  • Power Consumption And Current5 VDC, 1A, max. 6.5W
  • MaterialBracket: metal,Camera shell: plastic
  • DimensionsΦ78.1 mm × 110.2 mm (Φ3.07'' × 4.34'')
  • WeightCamera: Approx. 230 g (0.51 lb.)
  • Interface ProtectionTVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Compression Standard
  • H.264+Yes
  • H.265+Yes
Brouchure: https://cdn1.npcdn.net/attachments/15914162140af13fd259011654fa8e50c31a31187f.pdf
