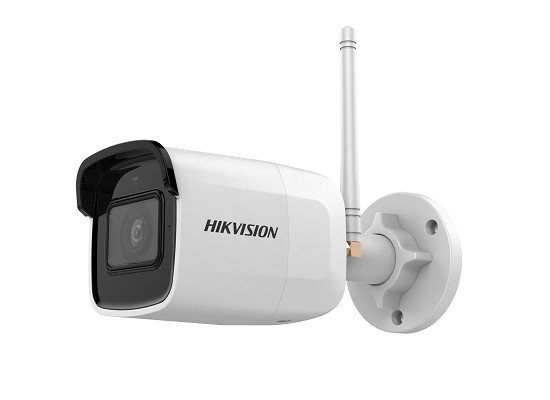

DS-2CD2041G1-IDW. Hikvision 4 MP Outdoor Fixed Bullet Network Camera with Build-in Mic

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CD2041G1-IDW. Hikvision 4 MP Outdoor Fixed Bullet Networ

DS-2CD2041G1-IDW. Hikvision 4 MP Outdoor Fixed Bullet Network Camera with Build-in Mic. #ASIP Connect

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to DWDR technology
  • Up to 128 GB SD card slot for storage
  • Built-in microphone for real-time audio security
  • Wi-Fi connection and easy installation
  • Water and dust resistant (IP66)
  • Camera
  • Image Sensor1/3'' Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @(F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic RangeDWDR
  • DNR3D DNR
  • Axis AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Auto-IrisNo
  • ApertureF2.0
  • FocusNo
  • FOV2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 117° 4 mm, horizontal FOV: 75°, vertical FOV: 41°, diagonal FOV: 88°
  • Lens MountM12
  • Focal Length2.8/4 mm
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850 nm
  • Network
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
  • Network StorageSupport built-in microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
  • Protocols802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientWired network: Hik-Connect, iVMS-4200, iVMS-5200, iVMS-4500 Wi-Fi: iVMS-4200, iVMS-5200, iVMS-4500
  • Web BrowserIE 8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Video
  • Max. Resolution2560 × 1440
  • Main Stream50Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  • Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8Mbps
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Smart Feature-Set
  • Region Of InterestSupport 1 fixed region for main stream and sub-stream
  • Image
  • Image EnhancementBLC/3D DNR
  • Image SettingSaturation, brightness, contrast and sharpness are adjustable via client software and web browser
  • Day/Night SwitchAuto/Scheduled/Day/Night
  • Wi-Fi
  • Wireless StandardsIEEE802.11b, 802.11g, 802.11n
  • Frequency2.412 GHz - 2.472 GHz
  • Channel Bandwidth20/40 MHz
  • Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
  • Transfer Rate11b/g: 54 Mbps 11n: up to 150 Mbps
  • Wireless RangeUp to 50 m (The performance varies based on actual environment)
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 Built-in mic, mono sound
  • AlarmNo
  • Video OutputNo
  • On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
  • General
  • Firmware VersionV5.5.88
  • General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • ResetYes
  • Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Ø5.5 mm coaxial plug power
  • Power Consumption And Current12 VDC, 0.5 A, max: 6 W, <20 dBm
  • MaterialFront cover: plastic, camera body: metal
  • DimensionsCamera: 69.7 mm × 67.9 mm × 171.4 mm (2.7'' × 2.7'' × 6.7'') With package: 216 mm × 121 mm × 118 mm (8.5'' × 4.8'' × 4.6'')
  • WeightCamera: 372 g (0.8 lb.) With package: 659 g(1.5 lb.)
  • Approval
  • ProtectionIngress protection: IP66 (IEC 60529-2013)
  • Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports
Brouchure: https://cdn1.npcdn.net/attachments/15914152610af13fd259011654fa8e50c31a31187f.pdf
