DS-D2046NL-E. Hikvision 46-inch 1.7mm LCD Display Unit. #ASIP Connect

     Monitor/LCD/LED ---    HIKVISION    ---

Previous ‹‹ » Next

DS-D2046NL-E. Hikvision 46-inch 1.7mm LCD Display Unit. #ASI

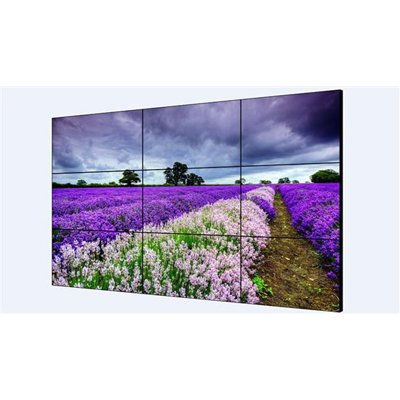

DS-D2046NL-E. Hikvision 46-inch 1.7mm LCD Display Unit. #ASIP Connect

  • Direct-lit LED backlight with uniform brightness and no boundary shadows
  • 1920 × 1080 resolution, 178° viewing angle
  • Extreme narrow 1.7 mm bezel design
  • Factory calibration for color uniformity
  • Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
  • Stable and 24-hour continuous working
  • Metal casing for preventing from radiation and magnetic & electric field interference
  • Wall-mount and modular brackets available to meet various installation requirements
  • Product Model
  • Product ModelDS-D2046NL-E
  • Display
  • Screen Size46 inch
  • Active Display Area1018.08 (H) mm × 572.67 (V) mm
  • BacklightDirect-lit LED backlight
  • Pixel Pitch0.53 mm
  • Physical Seam1.7 mm
  • Bezel Width1.1 mm (top/left), 0.6 mm (bottom/right)
  • Resolution1920 × 1080@60 Hz (downward compatible)
  • Brightness500 cd/m²
  • Viewing AngleHorizontal 178°, vertical 178°
  • Color Depth8 bit, 16.7 M
  • Contrast Ratio4000:1
  • Response Time8 ms (G to G)
  • Color Gamut72% NTSC
  • Surface TreatmentHaze 25%, 2H
  • Interface
  • Video & Audio InputHDMI × 1, DVI × 1, VGA × 1, CVBS × 1, USB × 1
  • Video & Audio OutputDVI × 1, VGA × 1, CVBS × 1
  • Control InterfaceRS232 IN × 1, RS232 OUT × 1
  • Power
  • Power Supply100-240 VAC, 50/60 Hz
  • Power Consumption≤ 111 W
  • Standby Consumption≤ 0.5 W
  • Working Environment
  • Working Temperature0°C to 40°C (32°F to 104°F)
  • Working Humidity20% to 90% RH (non-condensing)
  • Storage Temperature-20°C to 65°C (-4°F to 149°F)
  • Storage Humidity5% to 90% RH (non-condensing)
  • General
  • Casing MaterialSECC
  • VESA600 (H) mm × 400 (V) mm
  • Product Dimension (W × H × D)1020.02 mm × 574.61 mm × 71 mm (40.17'' × 22.72'' × 2.8'')
  • Package Dimension (W × H × D)Carton with two displays: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'') Carton with a single display: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'')
  • Net Weight18.71 ± 0.5 Kg (41.25 ± 1.1 lb) for single display
  • Gross WeightCarton with two displays: 46.62 ± 0.5 Kg (102.78 ± 1.1 lb) Carton with a single display: 25.54 ± 0.5 Kg (56.31 ± 1.1 lb)
  • Packing ListLCD display × 1, power cable × 1, network cable × 1, screw × 4, installation instruction × 1, remote control × 1, IR receiver × 1, CD-ROM × 1, RS-232 converter × 1
Brouchure: https://cdn1.npcdn.net/attachments/15913497460af13fd259011654fa8e50c31a31187f.pdf
