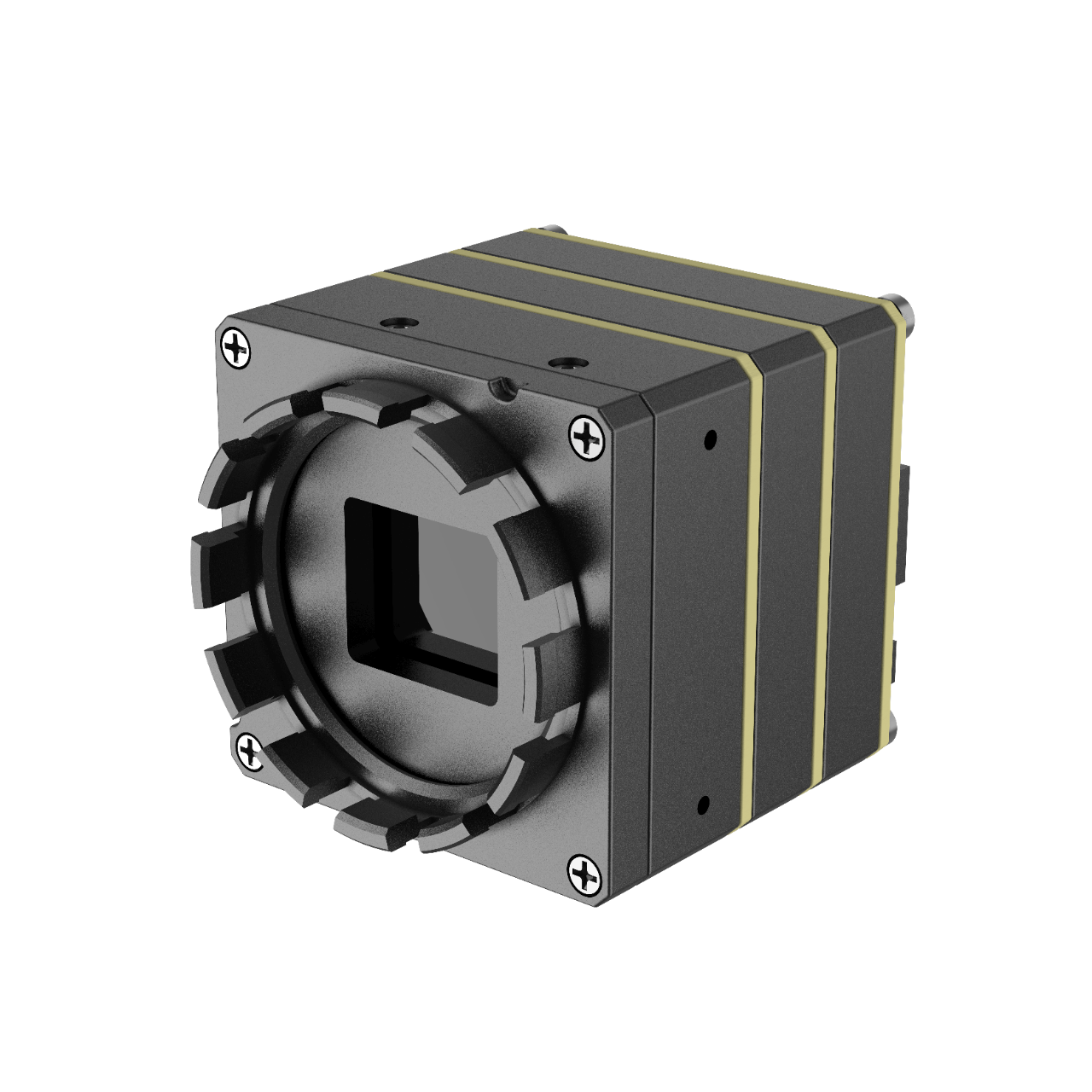

DS-2TM03-NF. Hikivison Thermal Camera Core. ASIP Connect
- High sensitivity sensor with 384 x 288 resolution
- NETD is less than 35 mk (@30° C, F#=1.0)
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Highly-reliable shutter, up to 300,000 exposures
- Supports CVBS and BT.656
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- NETD< 35mk @ F1.0, 30 °C (86 °F)
- Response Waveband8 μm to 14 μm
- Max. Resolution384 × 288
- Pixel Pitch17 μm
- Frame25 fps
- Lens (Optional)15 mm, 25 mm
- PalettesWhite Hot, Black Hot, Fusion1, Rainbow, Fusion2, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue
- General
- Power10 V DC to 14 V DC
- Power Consumption≤ 1.4w (TYP)
- Video OutputBT.656 (720 × 576),CVBS
- First Image< 5s
- Communication TypeRS-232 Serial Port
- Shutter Life300,000 Times
- Lens MountM34*0.75
- Impact Strength750g/1ms
- Working Temperature-40 °C to +70 °C (-40 °F to 158 °F)
- Storage Temperature-45 °C to +85 °C (-49 °F to 185°F)
- Dimensions40 mm × 41 mm × 49 mm (1.57 ″× 1.61 ″× 1.93 ″)
- Weight< 90 g (0.20 lb) (Without lens)
