DS-2TS36-75VI/WL. Hikvision Handheld Thermal Multi-function Binocular Camera. #ASIP Connect

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

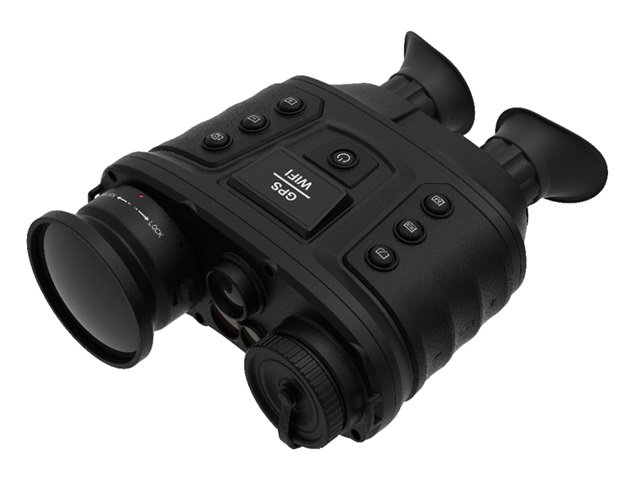

DS-2TS36-75VI/WL. Hikvision Handheld Thermal Multi-function

DS-2TS36-75VI/WL. Hikvision Handheld Thermal Multi-function Binocular Camera. #ASIP Connect

  • High sensitivity thermal module with 384 x 288 resolution
  • NETD < 40 mk (@25° C, F#=1.0)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • High quality optical module with 1280 x 960 resolution
  • Ultra-low illumination (optical channel), B/W: 0.001 lux @ (F1.0, AGC On)
  • Bi-spectrum image fusion and object highlighting (detail enhancement and target recognition)
  • Video recording, replay, snapshot, and search (users can review event on device)
  • Wi-Fi hot spot
  • Supports Eye Safety Laser (Laser-distance detection up to 3 km with accuracy up to 0.75 m)
  • Bulit-in Laser-distance detection module, compass, and GPS module, Supports self-positioning and target positioning
  • Digital Magnetic Compass and Inclination Sensor
  • Thermal Module
  • NETD< 40mk (@25°C,F#=1.0)
  • Field Of View8.3° × 6.64° (H × V)
  • ApertureF 1.2
  • Pixel Pitch17μm
  • Response Waveband8μm to 14μm
  • MRAD (IFOV)0.23
  • Digital Zoom
  • Max. Resolution640 × 512
  • Lens (Focal Length)75mm Electric focus
  • Image Display
  • Thermal/Optical ModeThermal view, B/W optical view, image fusion view are selectable
  • Image FusionColor fusion, B/W fusion
  • Monitor0.39-inch, OLED, 1024 ×768
  • PalettesBlack hot, white hot
  • Optical Module
  • Max. Resolution1920 × 1080 @25fps
  • Image Sensor1/1.8'' Progressive Scan CMOS
  • Min. IlluminationB/W : 0.001 lux @ (F1.0 , AGC On)
  • Lens (Focal Length)22 mm
  • Image Enhancement3D DNR, Adaptive AGC
  • Smart
  • Laser-Distance DetectionUp to 3 km
  • Hot TrackYes
  • Object HighlightYes
  • Automatic BacklightThe OLED backlight automatically turns off if no human eyes are detected.
  • System
  • Measure DistanceMax. 3km
  • Accuracy0.75m
  • Nominal Wavelength1550 nm (class1)
  • Head Accuracy0.2 °(RMS)
  • Record VideoOn-board video recording
  • SnapshotOn-board image capturing
  • Video ReplayYes
  • Picture SearchYes
  • Wi-FiYes
  • GPSYes
  • StorageBuilt-in memory module (32GB)
  • Power Supply
  • Battery TypeFour 18650 batteries, requires 5 hours to be fully charged
  • Battery Operating Time≥7h
  • Battery Capacity DisplayYes
  • General
  • PowerDC 5V/2A, Max.10W
  • WeightApprox. 1.5 Kg (3.3 lb)
  • Protection LevelIP67
  • Dimension (L X W X H)188mm × 242.9mm × 87.4mm (7.4'' ×9.6'' ×3.4'')
  • Cable OutputAviation plug: connecting to BNC, DB9, and USB
  • Accessories (Supplied)Battery charger, battery charger power cable, wiping cloth, two wrist straps, User manual, aviation plug cable, eight batteries
  • MountingUNC 1/4”-20
  • Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Brouchure: https://cdn1.npcdn.net/attachments/15910779380af13fd259011654fa8e50c31a31187f.pdf
