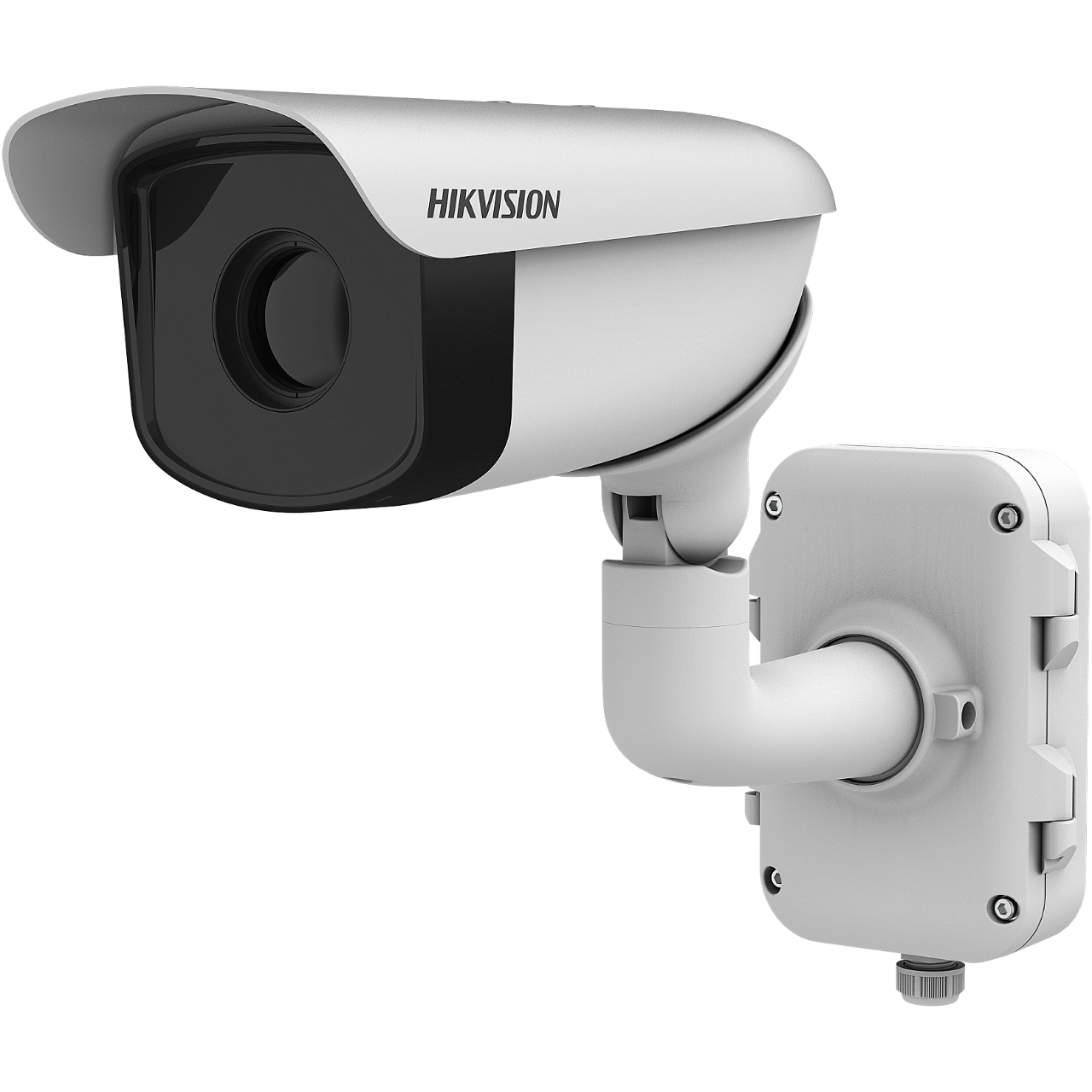

DS-2TD2366-50. Hikvision Thermal Network Bullet Camera. #ASIP Connect

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2TD2366-50. Hikvision Thermal Network Bullet Camera. #ASI

DS-2TD2366-50. Hikvision Thermal Network Bullet Camera. #ASIP Connect

  • High sensitivity sensor with 640 x 512 resolution
  • NETD is less than 40 mk (@25° C, F#=1.0)
  • Supports contrast adjustment
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Up to 15 palettes of adjustable color
  • Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
  • Reliable temperature-anomaly alarm
  • Advanced fire detection algorithm
  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Interval17 μm
  • Response Waveband8 μm to 14 μm
  • NETDless than 40mk (@25°C,F#=1.0)
  • MRAD0.34 mrad
  • Field Of View12.42° × 9.95° (H × V)
  • Min. Focusing Distance7.5 m
  • ApertureF 1.0
  • Smart Function
  • VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
  • Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
  • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy±8 °C (14.4 °F)
  • Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
  • Network
  • Main Stream50fps (384×288)
  • Sub Stream50fps (384×288)
  • Third Stream50fps (384×288)
  • Video CompressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
  • Audio CompressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Simultaneous Live ViewUp to 20
  • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
  • Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Integration
  • Alarm Input2-ch inputs (0-5V DC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Alarm ActionPreset/Patrol Scan/ Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
  • Audio OutputLinear Level; Impedance: 600Ω
  • Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface
  • SD Memory CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording
  • Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
  • Application ProgrammingOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
  • ClientiVMS-4200
  • Web BrowserIE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
  • General
  • Menu LanguageEnglish
  • Power24 VAC± 25%, 12 VDC± 20%, two-core terminal block
  • Power Consumption24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A, max. 8W (22W with De-icing Heater On)
  • Work Temperature/Humidity-40 °C to 65 °C (-40 °F to 149 °F), 90% or less
  • Protection LevelIP66 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection
  • Dimensions535mm × 400mm × 171mm (21.06'' × 15.75'' × 6.73'')
  • WeightApprox. 6.40 kg (14.11 lb)
Brouchure: https://cdn1.npcdn.net/attachments/15909779280af13fd259011654fa8e50c31a31187f.pdf
