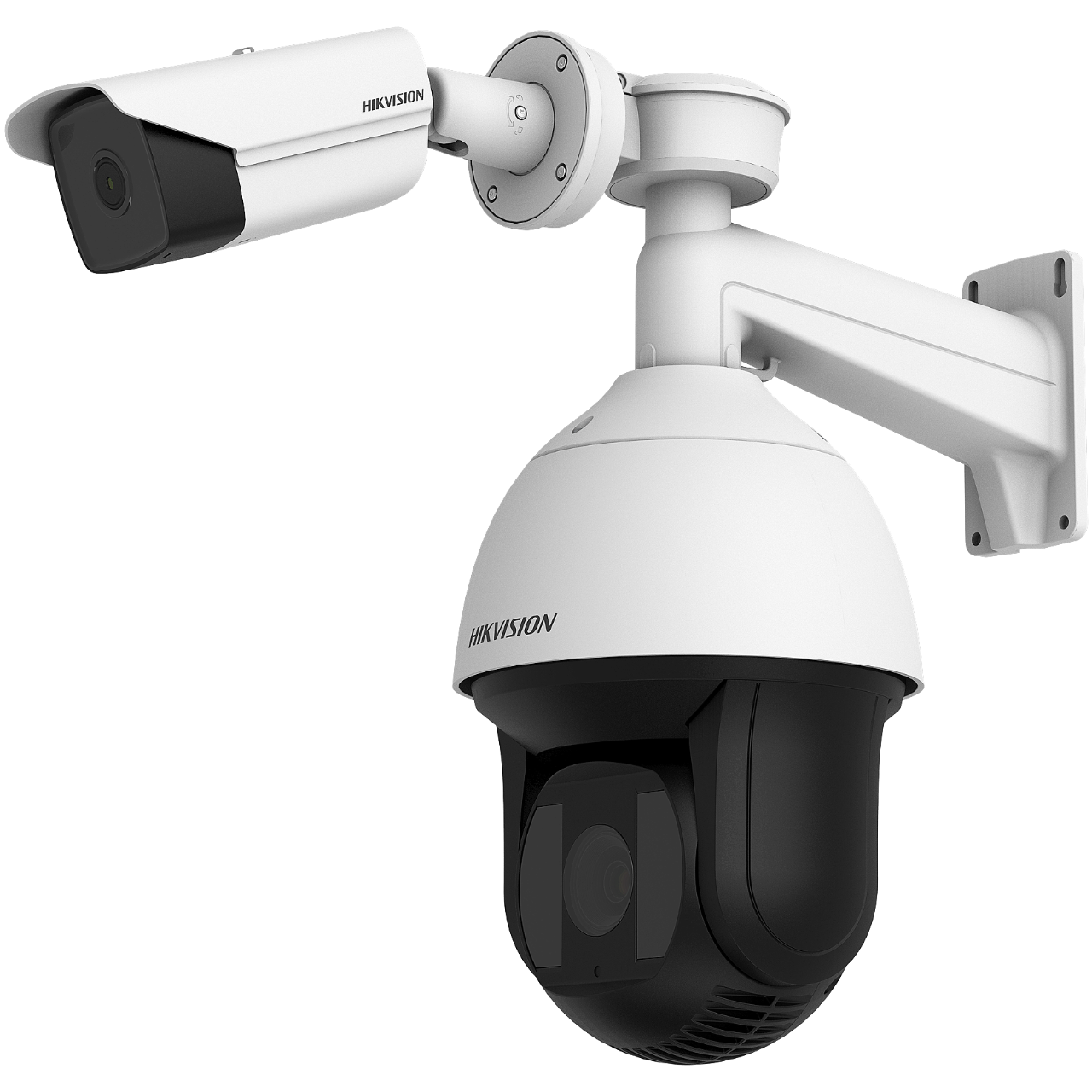

DS-2TX3636-10A/V1. Hikvision Thermal Smart Linkage Tracking System. #ASIP Connect
CCTV System --- HIKVISION ---
Previous ‹‹ | » Next |
DS-2TX3636-10A/V1. Hikvision Thermal Smart Linkage Tracking System. #AIASIA Connect
- High sensitivity thermal module with 384 x 288 resolution
- NETD is less than 40 mk (@25° C, F#=1.0)
- Supports contrast adjustment
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Up to 15 palettes of adjustable color
- Speed Dome supports 36x optical zoom with over 200 m IR distance
- Smart analysis and linkage, no VCA server configuration required
- Automatic master-slave tracking: Stable and continuous
- Manual master-slave tracking: Select fixed camera region in the software and the speed dome will auto-adjust PTZ to centralize the selection
- Master-slave linkage rules: Intrusion detection, line crossing detection
- Track up to 30 targets simultaneously with up to 150 m effective detecting distance (on human targets)
- Target multi-tracking and auto-switch, with less than 1-second response time
- Configurable tracking duration, sensitivity, and target type
- System Functions
- Click LinkageSupport
- Tracking ModeManual/Auto
- Multi-Targets TrackingUp to 30 Targets Simultaneously; with up to 150 m effective detecting distance (to,human targets) and 450 m effective detecting distance (to vehicle targets)
- Switch TimeLess than 1s
- Master-Slave Linkage RulesSupport Intrusion Detection, Line Crossing Detection
- Tracking Time ConfigurationSupport
- Sensitivity ConfigurationSupport
- Fixed Camera
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Max. Resolution384 × 288
- Response Waveband8μm to 14μm
- NETD< 40mk (@25°C,F#=1.0)
- Lens (Focal Length)10 mm
- IFOV (MRAD)1.70 mrad
- Field Of View37.20° × 28.33°
- Min. Focusing Distance1 m
- ApertureF 1.0
- Main Stream50fps (384×288)
- Sub Stream50fps (384×288)
- Third Stream50fps (384×288)
- Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265, H.264+, H.265+
- Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
- Memory CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 64G), support manual/alarm recording
- Alarm Input2-ch inputs (0-5vDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
- Audio OutputLine level, impedance: 600Ω
- Analog Video Output1.0V[p-p] / 75Ω, PAL(or NTSC), BNC
- Speed Dome
- Image Sensor1/1.9” Progressive Scan CMOS
- Min. Illumination50 IRE; Color: 0.002Lux @ (F1.5, AGC ON), B/W: 0.0002Lux @ (F1.5, AGC ON), 0 Lux with IR
- Max. Image Resolution1920 × 1080
- Focal Length5.7 to 205.2, 36×
- Digital Zoom16 ×
- Zoom SpeedApprox. 7.4s (Optical, Wide-Tele)
- Angle Of View58.7 ° to 2.0 ° (Wide-Tele)
- Min. Working Distance10mm to 1500mm (Wide-Tele)
- Aperture RangeF 1.5 to F 4.5
- Focus ModeAuto/Semiautomatic/Manual
- WDR120dB
- Shutter Time50 Hz: 1s to 30,000s; 60Hz: 1s to 30,000s
- AGCAuto/Manual
- White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
- Day & NightIR cut filter
- Privacy Mask24 programmable privacy masks
- Optical DefogSupport
- Enhancement3D DNR, EIS, HLC/BLC, SVC
- Pan SpeedManual Speed: 0.1°/s to 160°/s ,Preset: 240°/s
- Tilt SpeedManual Speed: 0.1°/s to 120°/s,Preset: 200°/s
- Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720)
- Sub Stream50Hz: 25fps (704 × 576, 352 × 288, 176 × 144),60Hz: 30fps (704 × 480, 352 × 240, 176 × 120)
- Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 352 × 288, 176 × 144),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 352 × 240, 176 × 120)
- Image CompressionH.264 (Baseline/Main/High Profile)/MJPEG/MPEG4
- Audio CompressionG.711alaw/G.711ulaw/G.722/G.726/MP2L2/ PCM
- IR DistanceUp to 200m
- Alarm LinkagePreset, Patrol, Pattern, Micro SD/SDHC Card Recording, Aux Output, Notification on Client, FTP Uploading, Sending Email, Triggering Channel
- Alarm Input7 –ch
- Alarm Output2 –ch; Support Alarm Linkage
- Audio Input1 LINE_IN Input and MIC Input; Peak: 2 to 2.4V [p-p]; Impedance: 1KΩ±10%
- Audio Output1; Linear Level; Impedance: 600Ω
- Ethernet10 Base-T/100 Base-TX. RJ45 Connector
- On-Board StorageBuilt-in Micro SD/SDHC/SDXC Card Slot, Up to 128GB, Support Manual/Alarm Recording
- Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- RS-485Half-duplex; HIKVISION, PELCO-P, PELCO-D Self-adaptive
- General
- Power24 V AC/5A, ,Max. consumption: 80W (with IR and heater on),IR Light consumption: Max. 24 W, and Heater consumption: Max. 15 W
- Protection LevelIP66, TVS 6000V Lightening Protection, Surging Protection and Voltage Transient Protection
- DimensionsΦ266.6 mm × 573.5 mm × 699.8 mm (Φ10.5” × 22.6” × 27.5”)
- Weight10.89 kg (Approx. 24.0 lbs)
- Movement RangeNetwork Camera (Universal Joint Module): Pan: 90°, Tilt: -45° to 45°,Speed Dome: Pan: 360°, Tilt: -20° to 90°, Auto Flip
- Working Temperature/HumidityFrom -40°C to 65°C (-40 °F to 149 °F); Humidity: 90% or Less
- MountWall Mount
- MenuEnglish
