DS-2TX3636-15P/V1. Hikvision Thermal Smart Linkage Tracking System. #ASIP Connect

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

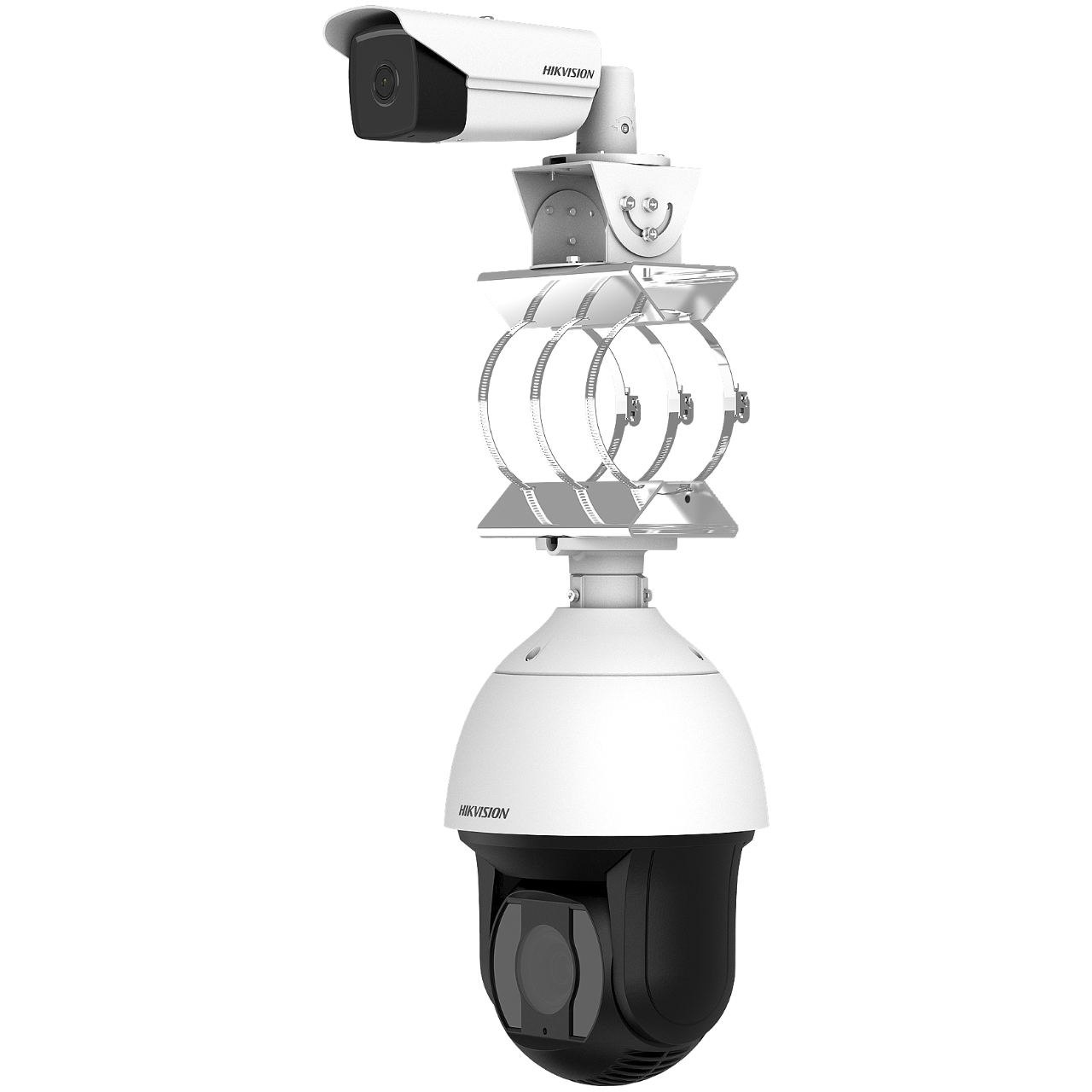

DS-2TX3636-15P/V1. Hikvision Thermal Smart Linkage Tracking

DS-2TX3636-15P/V1. Hikvision Thermal Smart Linkage Tracking System. #ASIP Connect

  • High sensitivity thermal module with 384 x 288 resolution
  • NETD is less than 40 mk (@25° C, F#=1.0)
  • Supports contrast adjustment
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Up to 15 palettes of adjustable color
  • Speed Dome supports 36x optical zoom with over 200 m IR distance
  • Smart analysis and linkage, no VCA server configuration required
  • Automatic master-slave tracking: Stable and continuous
  • Manual master-slave tracking: Select fixed camera region in the software and the speed dome will auto-adjust PTZ to centralize the selection
  • Master-slave linkage rules: Intrusion detection, line crossing detection
  • Track up to 30 targets simultaneously with up to 150 m effective detecting distance (on human targets)
  • Target multi-tracking and auto-switch, with less than 1-second response time
  • Configurable tracking duration, sensitivity, and target type
  • System Functions
  • Click LinkageSupport
  • Tracking ModeManual/Auto
  • Multi-Targets TrackingUp to 30 Targets Simultaneously; with up to 150 m effective detecting distance (to,human targets) and 450 m effective detecting distance (to vehicle targets)
  • Switch TimeLess than 1s
  • Master-Slave Linkage RulesSupport Intrusion Detection, Line Crossing Detection
  • Tracking Time ConfigurationSupport
  • Sensitivity ConfigurationSupport
  • Fixed Camera
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Max. Resolution384 × 288
  • Response Waveband8μm to 14μm
  • NETD< 40mk (@25°C,F#=1.0)
  • Lens (Focal Length)15 mm
  • IFOV (MRAD)1.13 mrad
  • Field Of View24.55° × 18.54°
  • Min. Focusing Distance2.5 m
  • ApertureF 1.0
  • Main Stream50fps (384×288)
  • Sub Stream50fps (384×288)
  • Third Stream50fps (384×288)
  • Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265, H.264+, H.265+
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Memory CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 64G), support manual/alarm recording
  • Alarm Input2-ch inputs (0-5vDC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
  • Audio OutputLine level, impedance: 600Ω
  • Analog Video Output1.0V[p-p] / 75Ω, PAL(or NTSC), BNC
  • Speed Dome
  • Image Sensor1/1.9” Progressive Scan CMOS
  • Min. Illumination50 IRE; Color: 0.002Lux @ (F1.5, AGC ON), B/W: 0.0002Lux @ (F1.5, AGC ON), 0 Lux with IR
  • Max. Image Resolution1920 × 1080
  • Focal Length5.7 to 205.2, 36×
  • Digital Zoom16 ×
  • Zoom SpeedApprox. 7.4s (Optical, Wide-Tele)
  • Angle Of View58.7 ° to 2.0 ° (Wide-Tele)
  • Min. Working Distance10mm to 1500mm (Wide-Tele)
  • Aperture RangeF 1.5 to F 4.5
  • Focus ModeAuto/Semiautomatic/Manual
  • WDR120dB
  • Shutter Time50 Hz: 1s to 30,000s; 60Hz: 1s to 30,000s
  • AGCAuto/Manual
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
  • Day & NightIR cut filter
  • Privacy Mask24 programmable privacy masks
  • Optical DefogSupport
  • Enhancement3D DNR, EIS, HLC/BLC, SVC
  • Pan SpeedManual Speed: 0.1°/s to 160°/s ,Preset: 240°/s
  • Tilt SpeedManual Speed: 0.1°/s to 120°/s,Preset: 200°/s
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720)
  • Sub Stream50Hz: 25fps (704 × 576, 352 × 288, 176 × 144),60Hz: 30fps (704 × 480, 352 × 240, 176 × 120)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 352 × 288, 176 × 144),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 352 × 240, 176 × 120)
  • Image CompressionH.264 (Baseline/Main/High Profile)/MJPEG/MPEG4
  • Audio CompressionG.711alaw/G.711ulaw/G.722/G.726/MP2L2/ PCM
  • IR DistanceUp to 200m
  • Alarm LinkagePreset, Patrol, Pattern, Micro SD/SDHC Card Recording, Aux Output, Notification on Client, FTP Uploading, Sending Email, Triggering Channel
  • Alarm Input7 –ch
  • Alarm Output2 –ch; Support Alarm Linkage
  • Audio Input1 LINE_IN Input and MIC Input; Peak: 2 to 2.4V [p-p]; Impedance: 1KΩ±10%
  • Audio Output1; Linear Level; Impedance: 600Ω
  • Ethernet10 Base-T/100 Base-TX. RJ45 Connector
  • On-Board StorageBuilt-in Micro SD/SDHC/SDXC Card Slot, Up to 128GB, Support Manual/Alarm Recording
  • Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
  • RS-485Half-duplex; HIKVISION, PELCO-P, PELCO-D Self-adaptive
  • General
  • Power24 V AC/5A, ,Max. consumption: 80W (with IR and heater on),IR Light consumption: Max. 24 W, and Heater consumption: Max. 15 W
  • Protection LevelIP66, TVS 6000V Lightening Protection, Surging Protection and Voltage Transient Protection
  • DimensionsΦ266.6 mm × 573.5 mm × 698.5 mm (Φ10.5” × 22.6” × 27.5”)
  • Weight10.89 kg (Approx. 24.0 lbs)
  • Movement RangeNetwork Camera (Universal Joint Module): Pan: 90°, Tilt: -45° to 45°,Speed Dome: Pan: 360°, Tilt: -20° to 90°, Auto Flip
  • Working Temperature/HumidityFrom -40°C to 65°C (-40 °F to 149 °F); Humidity: 90% or Less
  • MountWall Mount
  • MenuEnglish
Brouchure: https://cdn1.npcdn.net/attachments/15906382550af13fd259011654fa8e50c31a31187f.pdf
