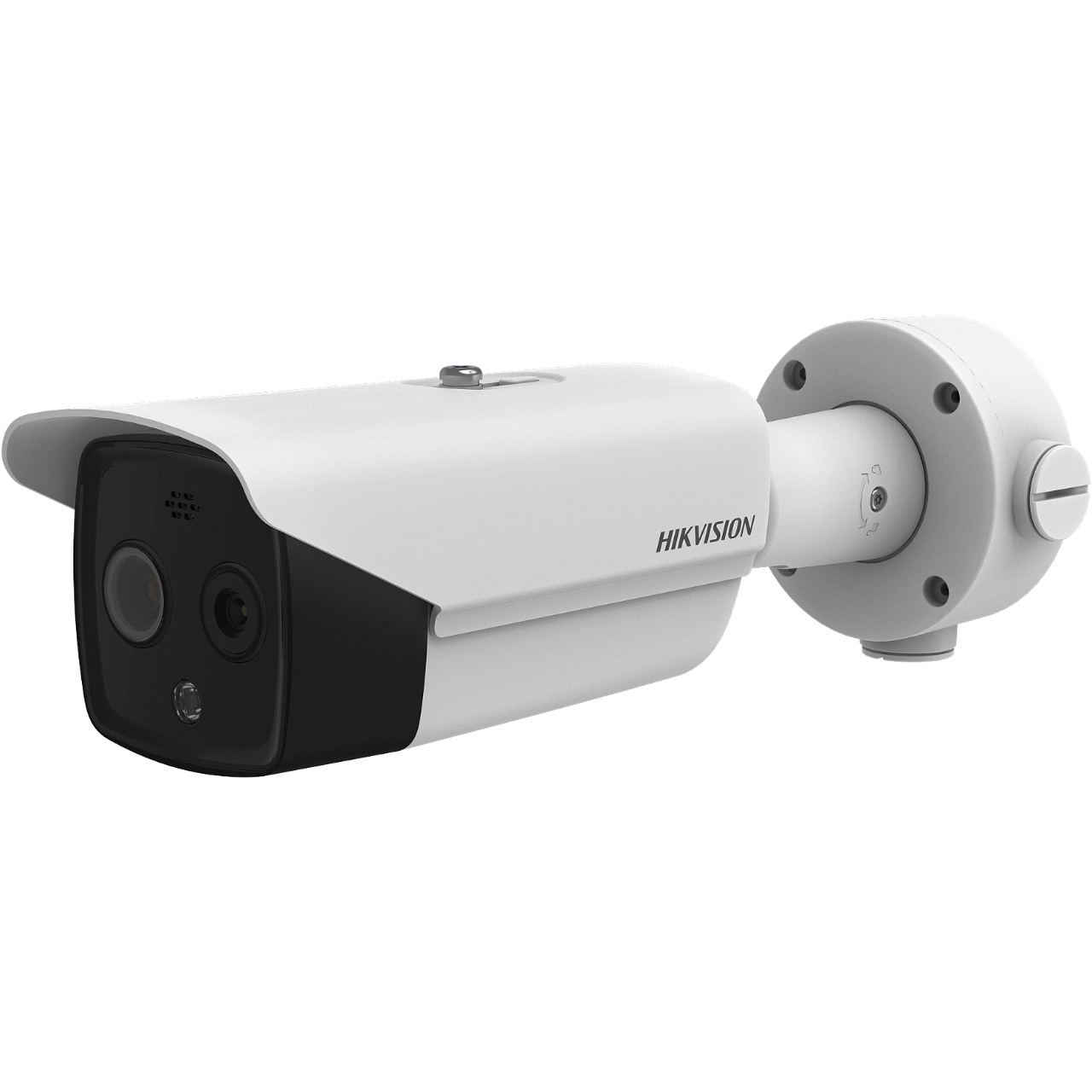

DS-2TD2617-6/P. Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera. #ASIP Connect
- High sensitivity thermal module with 160 x 120 resolution
- NETD is less than 40 mk (@25° C, F#=1.1)
- Supports contrast adjustment
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Up to 15 palettes of adjustable color
- Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
- Reliable temperature-anomaly alarm
- Advanced fire detection algorithm
- High quality optical module with 4 MP resolution
- Bi-spectrum image fusion, picture-in-picture preview
- Thermal
- Image SensorVOx Uncooled Focal Plane Arrays
- Resolution160×120
- Pixel Interval17μm
- Response Waveband8μm to 14μm
- NETDLess than 40 mK (@25°C,F#=1.1)
- Focal Length6.2mm
- IFOV2.74 mrad
- ApertureF1.1
- Field Of View25.0° × 18.7° (H × V)
- Min. Focusing Distance0.6 m
- Optical
- Image Sensor1/2.7'' Progressive Scan CMOS
- Resolution2688×1520, 4MP
- Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
- Field Of View39.42° × 22.14°(H × V)
- Focal Length8mm
- Shutter Speed1s to 1/100,000s
- White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
- Day & Night ModeIR cut filter with auto switch
- WDR120 dB
- Illuminator
- IR DistanceUp to 40 m
- IR Intensity And AngleAutomatically adjusted
- Feature
- Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
- Smart Function
- VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules totally.
- Temperature MeasurementSupport 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
- Temperature RangeFrom -20°C to +150°C (-4°F ~ +302°F)
- Temperature Accuracy± 8 °C (±14.4 °F)
- Fire DetectionSupport dynamic fire point detection, up to 10 fire points detectable.
- Smoking DetectionSupport
- Network
- Main StreamThermal: 25fps(1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720);Optical: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
- Sub StreamThermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
- Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
- Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
- SecurityPassword protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
- Simultaneous Live ViewUp to 20
- Interface
- ClientiVMS-4200, Hik-Connect
- Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
- Alarm Input2-ch inputs (0-5 VDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear Level; Impedance: 600Ω
- Communication Interface1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
- On-Board StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
- General
- Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
- PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.65A
- Power ConsumptionPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W 12 VDC ± 20%: 0.65 A, max. 7.5 W
- Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
- Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimension358.3 mm × 113.5 mm × 115.2 mm (14.10'' × 4.47'' × 4.53'')
- WeightApprox. 1.76 kg (3.88 lb)
- Detection Range Table/Wide Range Coverage
- Detection Range For Humans (1.8×0.5m)182 m
- Detection Range For Vehicles (4.0×1.4m)559 m
- Recognition Range For Humans (1.8×0.5m)46 m
- Recognition Range For Vehicles (4.0×1.4m)140 m
- Identification Range For Humans (1.8×0.5m)23 m
- Identification Range For Vehicles (4.0×1.4m)70 m
- Detection Range Table/Smart Function Range
- VCA Range For Humans42 m
- VCA Range For Vehicles126 m
- Temperature Measurement Range For Object (2m×2m)132 m
- Temperature Measurement Range For Object (1m×1m)66 m
- Fire Detection Range For Object (2m×2m)360 m
- Fire Detection Range For Object (1m×1m)180 m
