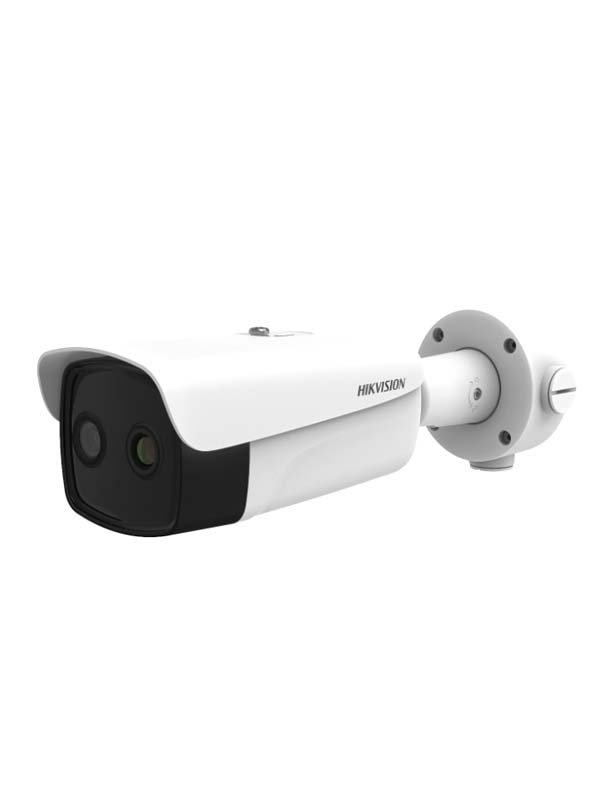

DS-2TD2636B-10/P. Hikvision Temperature Screening Thermographic Thermal Network Bullet Camera. #ASIP Connect

• High sensitivity thermal module with 384 x 288 resolution
• NETD is less than 40 mk (@25° C, F#=1.0)
• Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
• Reliable temperature detection alarm
• High quality optical module with 4 MP resolution
• Bi-spectrum image fusion, picture-in-picture preview

• Thermal
• Image SensorVOx Uncooled Focal Plane Arrays
• Resolution384×288
• Pixel Interval17μm
• Response Waveband8μm to 14μm
• NETDLess than 40 mK (@25°C,F#=1.0)
• Focal Length9.7mm
• Focus ModeAthermalized
• IFOV1.75 mrad
• ApertureF1.0
• Field Of View37.5° × 28.5° (H × V)
• Min. Focusing Distance1.2 m

• Optical
• Image Sensor1/2.7'' Progressive Scan CMOS
• Resolution2688×1520, 4MP
• Min. IlluminationColor: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
• Field Of View84° × 44.8° (H × V)
• Focal Length4mm
• Focus ModeFixed
• Shutter Speed1s to 1/100,000s
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
• Day & Night ModeIR cut filter with auto switch
• WDR120 dB

• Illuminator
• IR DistanceUp to 50 m
• IR Intensity And AngleAutomatically adjusted

• Feature
• Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
• Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel

• Smart Function
• Temperature MeasurementSupport 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
• Temperature RangeFrom 30°C to 45°C (86°F ~ 113°F)
• Temperature Accuracy± 0.5 °C

• Network
• Main StreamThermal: 50fps(1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720);Optical: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
• Sub StreamThermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
• Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
• Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
• SecurityPassword protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
• Simultaneous Live ViewUp to 20

• Interface
• ClientiVMS-4200, Hik-Connect
• Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
• Alarm Input2-ch inputs (0-5vDC)
• Alarm Output2-ch relay outputs, alarm response actions configurable
• Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio OutputLinear Level; Impedance: 600Ω
• RS4851, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
• Analog Video Output1.0V [p-p]/75Ω, BNC, PAL/NTSC
• Communication Interface1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
• On-Board StorageBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording

• General
• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• WiperNo
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• Power24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
• Power Consumption18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
• Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
• Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimension376.1 mm × 119.1 mm × 118.1 mm (14.81'' × 4.68'' × 4.65'')
• WeightApprox. 1.82 kg (4.01 lb)
