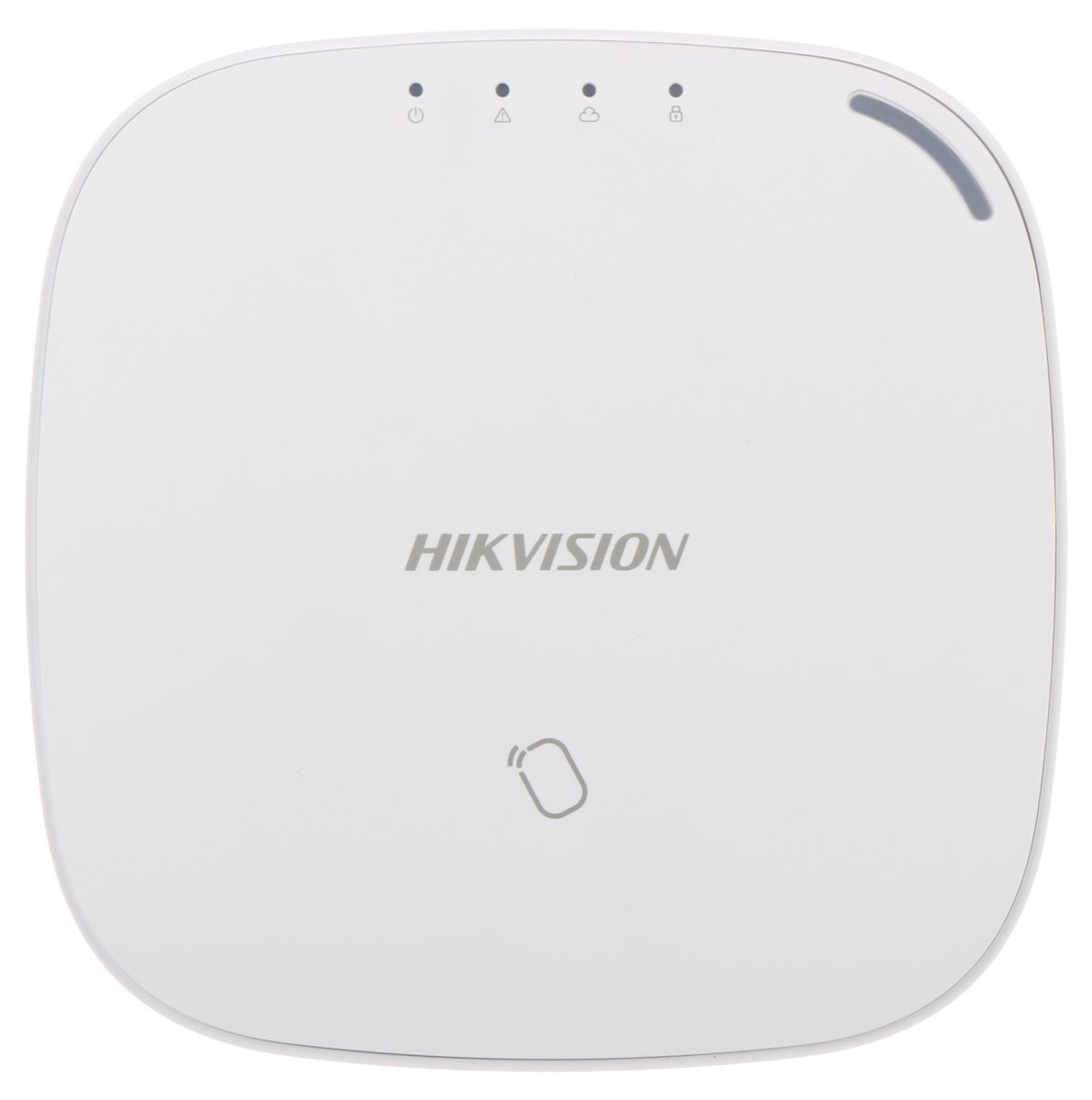

DS-PWA32-HSR(868MHz). Hikvision AX Wireless Panel(868MHz). #ASIP Connect

• Supports up to 32 wireless inputs, 4 wireless output expanders
• Offers multiple communication methods: LAN + Wi-Fi + 3G/4G
• Up to 2-ch. on-board video verification
• Offers reliable protection utilizing two-way wireless technology
• Wireless connection reduces installation time
• Communicates up to 800 m (in open areas)
• Supports arming/disarming by swiping card with built-in proximity reader
• Supports viewing event video via mobile client and email
• SIA-Contact ID protocol comaptible

• Electrical Characteristics
• Power Supply5 VDC，10 W
• Battery Type4520 mAh lithium backup battery
• Battery Life Spansupports up to 12h power supply
• Power Consumption< 5.6 W

• Features
• Partition4
• Onboard Video ClipsUp to 2-ch onboard video
• Tamper-ProofTampering alarm
• ScheduleAuto Arm/Disarm Schedule
• SMS NotificationSupport
• Phone Call NotificationSupport
• Phone Numbers8
• Signal Strength Indication；Signal Strength Indicators (SSI)；
• Firmware Undate ToolsWeb client / iVMS-4200 / Hik-Connect
• Configuration ToolsWeb client / iVMS-4200 / Hik-Connect
• ApplicationiVMS-4200, and mobile APP
• ProtocolSIA - Contact ID; EHome v5.0
• IC Card12
• User13 (1 installer, 1 administrator, and 11 general user)

• Interface
• Alarm Input32
• Alarm Output32
• IndicatorLED

• RF Transmission
• RF Frequency868MHz
• RF Modulation2GFSK
• RF Range800m (Open Area)

• Network
• Wired Network10M/100M Self-adaptive
• Network EncryptionAES-128 encryption
• Cellular Network3/4g
• Wi-Fi Standard802.11b/g/n
• Wi-Fi EncryptionSupported
• Wi-Fi Channel2.4 G

• General
• Operation Temperature–10 °C to 55 °C
• Operation Humidity10% to 90%
• Shell MaterialPC+ABS
• Dimension(WxHxD)155 × 155 × 35mm

• Audio
• Audio Output1, 1.5W

• Device Connection
• Keyfob8
• Wireless Siren4
• Tag Reader4
• Keypad4
