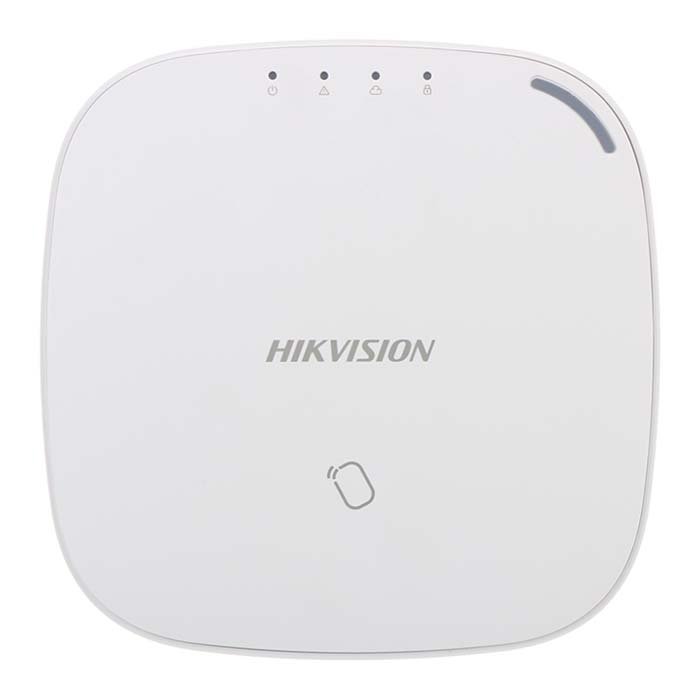

DS-PWA32-HR(433MHz). Hikvision AX Wireless Panel(433MHz). #ASIP Connec

     Alarm ---    HIKVISION    ---

Previous ‹‹ » Next

DS-PWA32-HR(433MHz). Hikvision AX Wireless Panel(433MHz). #A

DS-PWA32-HR(433MHz). Hikvision AX Wireless Panel(433MHz). #ASIP Connect

  • Supports up to 32 wireless inputs, 4 wireless output expanders
  • Offers multiple communication methods: LAN + Wi-Fi
  • Up to 2-ch. on-board video verification
  • Offers reliable protection utilizing two-way wireless technology
  • Wireless connection reduces installation time
  • Communicates up to 800 m (in open areas)
  • Supports arming/disarming by swiping card with built-in proximity reader
  • Supports viewing event video via mobile client and email
  • SIA-Contact ID protocol comaptible
  • Electrical Characteristics
  • Power Supply5 VDC£¬10 W
  • Battery Type4520 mAh lithium backup battery
  • Battery Life Spansupports up to 12h power supply
  • Power Consumption< 5.6 W
  • Features
  • Partition4
  • Onboard Video ClipsUp to 2-ch onboard video
  • Tamper-ProofTampering alarm
  • ScheduleAuto Arm/Disarm Schedule
  • SMS NotificationSupport
  • Phone Call NotificationSupport
  • Phone Numbers8
  • Signal Strength Indication£»Signal Strength Indicators (SSI)£»
  • Firmware Undate ToolsWeb client / iVMS-4200 / Hik-Connect
  • Configuration ToolsWeb client / iVMS-4200 / Hik-Connect
  • ApplicationiVMS-4200, and mobile APP
  • ProtocolSIA - Contact ID; EHome v5.0
  • IC Card12
  • User13 (1 installer, 1 administrator, and 11 general user)
  • Interface
  • Alarm Input32
  • Alarm Output32
  • IndicatorLED
  • RF Transmission
  • RF Frequency433MHz
  • RF Modulation2GFSK
  • RF Range800m (Open Area)
  • Network
  • Wired Network10M/100M Self-adaptive
  • Network EncryptionAES-128 encryption
  • Wi-Fi Standard802.11b/g/n
  • Wi-Fi EncryptionSupported
  • Wi-Fi Channel2.4 G
  • General
  • Operation Temperature–10 °C to 55 °C
  • Operation Humidity10% to 90%
  • Shell MaterialPC+ABS
  • Dimension(WxHxD)155 × 155 × 35mm
  • Audio
  • Audio Output1, 1.5W
  • Device Connection
  • Keyfob8
  • Wireless Siren4
  • Tag Reader4
  • Keypad4
