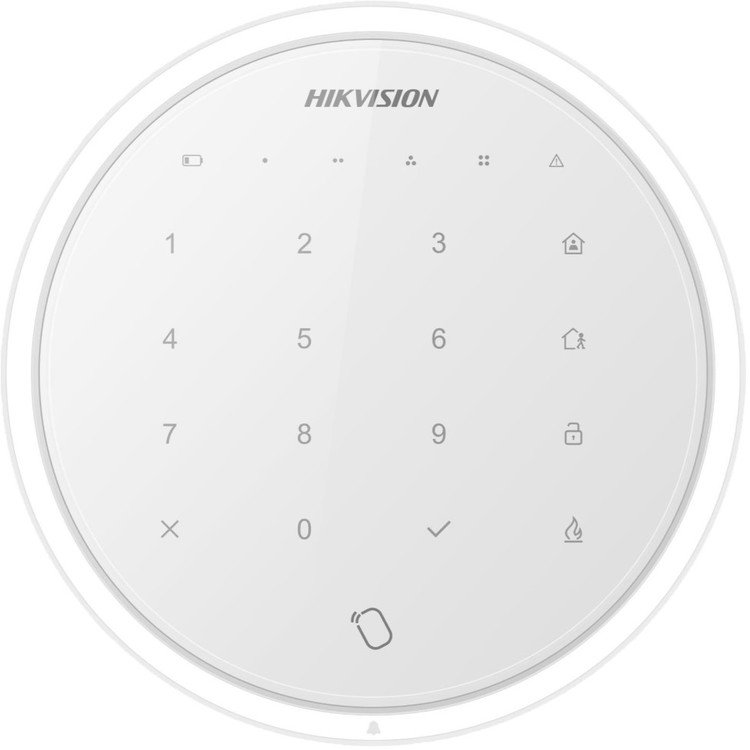

DS-PKA-WLM-433. Hikvision Wireless Keypad. #ASIP Connect

     Alarm ---    HIKVISION    ---

Previous ‹‹ » Next

DS-PKA-WLM-433. Hikvision Wireless Keypad. #ASIP Connect

DS-PKA-WLM-433. Hikvision Wireless Keypad. #ASIP Connect

  • RF 433MHz
  • Offers reliable protection utilizing two-way wireless technology
  • Operations: Arming, disarming, alarm clearing, etc.
  • Supports arming or disarming with card
  • Patrol card for checking in (different from the arming/disarming card)
  • Full touch screen design with LED backlight
  • Communicates up to 800 m (in open areas)
  • Electrical Characteristics
  • Power Supply3 VDC power input
  • Battery Type4 AA batteries
  • Battery Life Span3 years
  • Features
  • Tamper-ProofFront and rear
  • ProtocolHIK wireless protocol: Access to wireless control panel, twoway communication
  • IC CardSupports standard IC card swiping
  • Interface
  • Serial Port1, reserved
  • Numeric Key10 keys: 0 to 9
  • Function Key6 function keys: fire alarm, away arming, stay arming, disarming, delete, and confirm
  • Indicator3 status indicators: power (green), fault (orange), and alarm (red) 4 partition indicators: armed/disarmed (blue)
  • RF Transmission
  • RF Frequency433MHz
  • RF Modulation2GFSK
  • RF Power10 dBm
  • RF Speed10 kbps
  • RF Range800 m (open area)
  • General
  • Operation Temperature-10 °C to +55 °C (-4 °F to +122 °F)
  • Operation Humidity10% to 90% (No condensing)
  • Dimension(WxHxD)φ131.5 mm (5.2''); height: 23 mm (0.9'')
  • ColorWhite or black
