DS-2TD6266T-25H2L. Hikvision Thermographic Thermal & Optical Bi-spectrum Network Positioning System

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2TD6266T-25H2L. Hikvision Thermographic Thermal & Opt

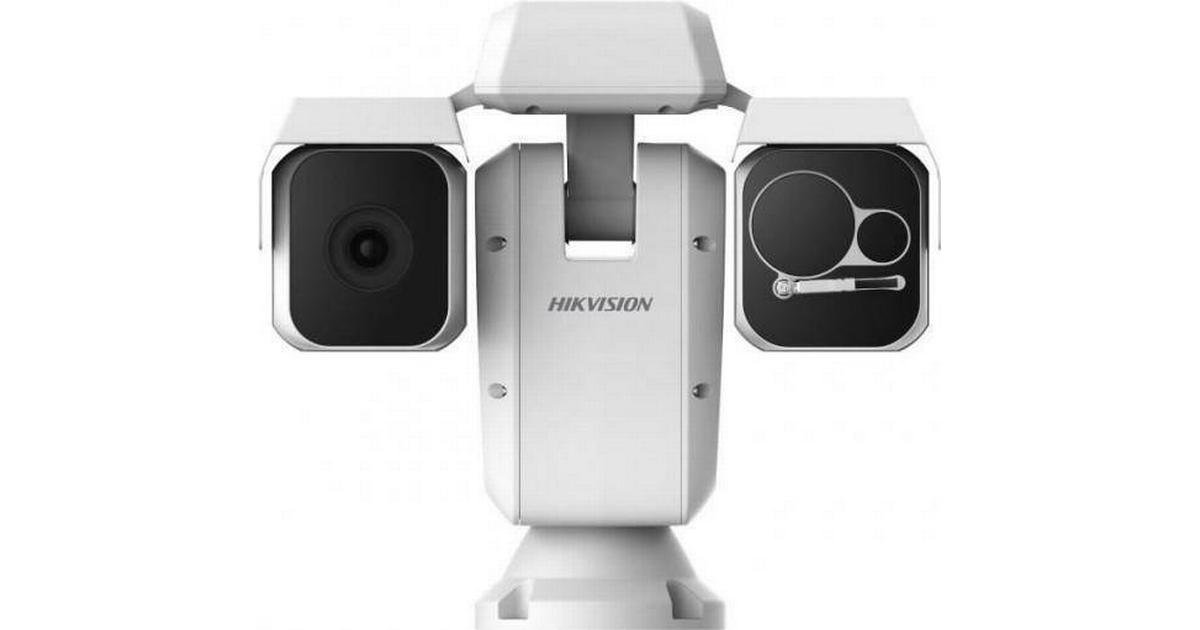

DS-2TD6266T-25H2L. Hikvision Thermographic Thermal & Optical Bi-spectrum Network Positioning System

  • High sensitivity thermal module with 640 x 512 resolution
  • NETD is less than 40 mk (@25° C, F#=1.0)
  • Supports contrast adjustment
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Up to 15 palettes of adjustable color
  • Smart tracking: Panorama, event and multi-scene patrol
  • Smart tracking linkage: Thermal and optical views
  • Powerful behavior analysis algorithm: Line crossing, intrusion, region entrance & exit
  • Reliable temperature-anomaly alarm
  • Wide temperature measurement range: -20 - 550° C
  • High temperature measurement accuracy: Up to ±2° C, ±2%
  • Advanced fire detection algorithm
  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Interval17μm
  • NETDless than 40mk(@25°C,F#=1.0)
  • MRAD0.68 mrad
  • Field Of View24.55° × 19.75°
  • Min. Focusing Distance1.5 m
  • ApertureF1.0
  • Lens (Focal Length)25 mm
  • Response Waveband8μm to 14μm
  • Max. Resolution640 × 512
  • Optical Module
  • Max. Resolution1920 × 1080
  • Image Sensor1/1.9’’ Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 lux @ (F1.5 , AGC On ),B/W : 0.0002 lux @ (F1.5 , AGC On )
  • Field Of View58.7° - 2.0° (Wide-Tele)
  • Aperture RangeF1.5-F4.5
  • Focus ModeAuto / Semiautomatic / Manual
  • WDR120dB
  • Shutter SpeedPAL: 1-1/30,000s / NTSC: 1-1/30,000s
  • Day & NightIR Cut Filter
  • Focal Length5.7-205.2mm, 36x
  • Smart Function
  • VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
  • Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
  • Temperature Range-20° C to 550° C (-4°F to 1,022°F)
  • Temperature AccuracyMax (± 2 °C, ± 2%)
  • Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
  • PTZ
  • Movement RangePan: 360° Continuous Rotate; Tilt: From -90° to + 40° (auto flip)
  • Pan SpeedConfigurable, From 0.1°/s to 110°/s
  • Tilt SpeedConfigurable, From 0.1°/s to 50°/s
  • Proportional ZoomYes
  • Presets300
  • Patrol Scan8; Up to 32 Presets Per Patrol
  • Pattern Scan4; More Than 10 Minutes Per Pattern
  • ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PT StatusTurn On/Turn Off
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • Infrared
  • IR DistanceUp to 200m
  • IR Intensity And AngleAutomatically adjusted
  • Network
  • Main StreamOptical:50Hz:25fps(1920×1080), 25fps(1280×960), 25fps(1280×720),Optical:60Hz:30fps(1920×1080), 30fps(1280×960), 30fps(1280×720),Thermal: 50fps(640 × 512)
  • Sub StreamOptical:50Hz:25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144),Optical:60Hz:30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120),Thermal: 50fps(640 × 512)
  • Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/MPEG4
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP, PPPoE, Bonjour
  • Simultaneous Live ViewUp to 20-ch
  • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
  • Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Integration
  • Alarm InputUp to 7-ch Relay Input (0-5V DC)
  • Alarm OutputUp to 2-ch; Support Alarm Linkage
  • Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
  • Audio OutputLinear Level; Impedance: 600Ω
  • EthernetBuilt-in RJ45; 10M/100M Ethernet Interface
  • SD Memory CardBuilt-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
  • Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
  • RS485Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
  • Application ProgrammingOpen-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
  • ClientiVMS-4200
  • Web BrowserIE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages
  • General
  • Menu LanguageEnglish
  • Power24V AC
  • Power Consumption120W
  • Work Temperature/HumidityFrom -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimensions486 mm × 330 mm × 486 mm (19.13'' × 12.99'' × 486'')
  • WeightApprox. 19kg (41.89lb)
Brouchure: https://cdn1.npcdn.net/attachments/15856485220af13fd259011654fa8e50c31a31187f.pdf
