enquiry@asip.com.myL3800. Entrypass Elevator Control Panel
Door Access System --- ENTRYPASS ---
| Previous ‹‹ | » Next |

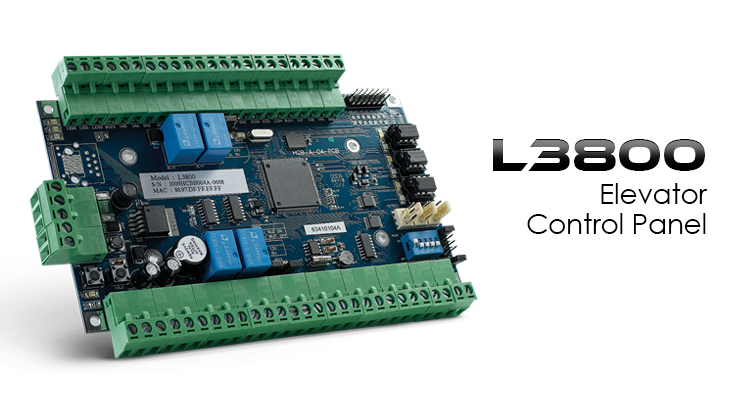

L3800. Entrypass Elevator Control Panel
- Support 8 floors by default (expendable to 136 Floors max.)
- Support timezone control bypass for individual floor
- Support up to 4 readers max.
- Support both RFID & biometrics readers
- Emergency bypass function by software
- Emergency bypass function by key Switch
- Support 30,000 Users And 80,000 Event Memory
| Hardware | Description |
|---|---|
| MCU | 32bits @ 60MHz |
| Memory |
256K Flash Memory 32K SRAM (Buffer) 64Mbits Non-Volatile SPI Flash Memory (Storage) |
| Card holder | 30,000 |
| Event Transaction | 80,000 |
|
Number of IO board can be connected |
8 (Complete with Expand Board) |
| Communication type | RS232/RS485 |
|
Communication type from EP.L3800 to IO board |
RS485 |
| Power Protection | Resettable Fuse - 2.5A |
| Surge Protection | TVS - Up to 15KVA |
| Onboard LED Control | Power / Communication / Event / Error |
| AC Fail Monitoring | Yes |
| Battery Monitoring | Yes (Firmware threshold control to shutdown control panel) |
| External Short Circuit Protection | At readers |
| Backup Battery | Yes, Apply to RTC only |
Brouchure: https://cdn1.npcdn.net/attachments/1585620788bf7068c9277922508e7e7e79483b2727.pdf
