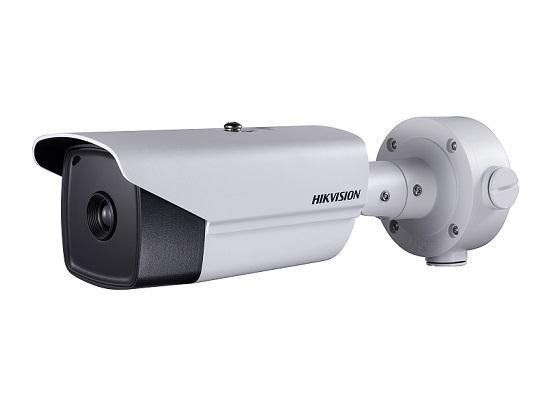

DS-2TD2136T-10. Hikvision Thermographic Network Bullet Camera

• High sensitivity sensor with 384 x 288 resolution
• NETD is less than 40 mk (@25° C, F#=1.0)
• Supports contrast adjustment
• Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
• Up to 15 palettes of adjustable color
• Powerful behavior analysis function: Line crossing, intrusion, region entrance & exit
• Reliable temperature-anomaly alarm
• Wide temperature measurement range: -20 - 550° C
• High temperature measurement accuracy: Up to ±2° C, ±2%
• Advanced fire detection algorithm

• Thermal Module
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Pixel Interval17 μm
• NETDless than 40mk (@25°C,F#=1.0)
• MRAD1.70 mrad
• Field Of View37.20° × 28.33° (H × V)
• Min. Focusing Distance1 m
• ApertureF 1.0
• Lens (Focal Length)10 mm
• Response Waveband8 μm to 14 μm
• Max. Resolution384 × 288

• Smart Function
• VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
• Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
• Temperature Range-20° C to 550° C (-4°F to 1,022°F)
• Temperature AccuracyMax (± 2 °C, ± 2%)
• Fire DetectionDynamic fire point detection, up to 10 fire points detectable.

• Network
• Main Stream50fps (384×288)
• Sub Stream50fps (384×288)
• Third Stream50fps (384×288)
• Video CompressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
• Audio CompressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Simultaneous Live ViewUp to 20
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

• Integration
• Alarm Input2-ch inputs (0-5V DC)
• Alarm Output2-ch relay outputs, alarm response actions configurable
• Alarm ActionPreset/Patrol Scan/ Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
• Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
• Audio OutputLinear Level; Impedance: 600Ω
• Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface
• SD Memory CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording
• Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
• Application ProgrammingOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
• ClientiVMS-4200
• Web BrowserIE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)

• General
• Menu LanguageEnglish
• Power24 VAC± 25%, 12 VDC± 20%, two-core terminal block PoE (802.3at, class 4)
• Power Consumption24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.7 A, max. 8W (20W with De-icing Heater On), PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A
• Work Temperature/Humidity-40 °C to 65 °C (-40 °F to 149 °F), 90% or less
• Protection LevelIP66 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection
• Dimensions352.4mm × 113.5mm × 113mm (13.9'' × 4.45'' × 4.46'')
• WeightApprox. 2kg (4.41lb)
