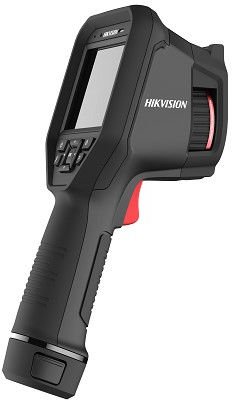

DS-2TP23-10VM/W. Hikvision Thermographic Handheld Camera

• High sensitivity thermal module with 384 x 288 resolution
• Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
• Supports multiple palettes
• High quality optical module with 2 MP resolution
• Bi-spectrum image fusion, picture-in-picture preview
• Wide temperature measurement range: -20 - 550° C
• High temperature measurement accuracy: Up to ±2° C, ±2%
• High-calibre 640 x 480 resolution 3.5'' LCD touch display
• Long-distance laser light supplement for thermography targets
• LED light supplement makes the device a torch in required scenarios
• Supports 1x, 2x and 4x digital zoom
• Live viewing, photo capture, and video recording are supported through Wi-Fi.Built-in rechargeable Li-ion battery
• Up to 4 hours continuous operation

• Thermal Module
• Image SensorUncooled Focal Plane Arrays
• NETD< 40mk (@ 25 °C,F#=1.0)
• Field Of View37.5° × 28.5 °
• ApertureF 1.0
• Pixel Pitch17μm
• Focal Length10 mm (Manual focus)
• IFOV (Mrad)1.7mrad
• Response Waveband8μm to 14μm
• Max. Resolution25Hz: 384 × 288

• Image Display
• Digital ZoomThermal: 1x, 2x, 4x
• Thermal / OpticalThermal/Optical/Fusion image/Picture in picture
• Picture In PictureSupport Thermal View in Optical View
• FusionSupport (Thermal View and Optical View Combined)
• Record VideoSupport on-board video recording
• Monitor640 × 480 resolution 3.5’ LCD touch display
• PalettesBlack hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain

• Optical Module
• Max. Resolution1920 × 1080
• Picture ResolutionDisplay: 384*288; Capture: 1920 × 1080
• Video ResolutionDisplay: 384*288; Record:1920 × 1080

• Thermography
• RulesMax. Temperature; Min. Temperature; Center Temperature; Custom Point/Line/Area Thermometry
• Thermometry Range-20 °C to 550 °C (-4 °F to 1022 °F)
• Thermometry AccuracyMax (±2 °C, ±2%)

• Battery
• Battery TypeReplaceable and rechargeable Lithium Battery
• Battery Operating TimeFour hours continuous running

• Functions
• Laser LightSupport (Point to the thermography target)
• StorageBuilt-in memory module (64G)
• PhotoThermal/Optical/Fusion image
• VideoThermal/Optical/Fusion image
• LightingSupport
• Wi-FiSupport
• Text CommentSupport
• Voice CommentSupport
• LanguageEnglish

• General
• Power12 V DC/1.5A, 5V DC/2A (Charging via USB)
• Power ConsumptionApprox. 5 W (Wi-Fi On), 4.2 W (Wi-Fi Off)
• WeightApprox. 660 g (1.46 lb)
• Hardware Interfacemicro USB
• Protection LevelIP54
• Drop Test Height2 m (6.56 feet)
• Dimension244 mm × 100 mm × 104 mm (9.6 ″ × 3.9 ″ × 4.1 ″)
• AccessoryBattery, Charger, USB cable, Box
• Working Temperature-20 °C to 50 °C (-4 °F to 122 °F)
