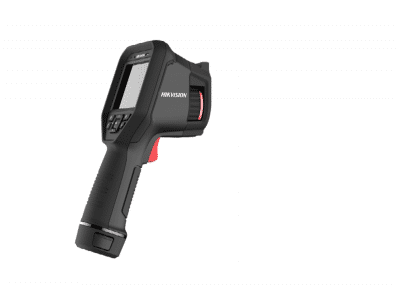

DS-2TP21-6AVF/W. Hikvision Thermographic Handheld Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2TP21-6AVF/W. Hikvision Thermographic Handheld Camera

DS-2TP21-6AVF/W. Hikvision Thermographic Handheld Camera

  • 160 × 120 resolution (thermal), and 8 MP resolution (optical)
  • DDE,3D DNR, and adaptive AGC
  • 640 × 480 resolution 3.5” LCD touch display
  • Up to five hours continuous running

  • Thermal
  • Image SensorVOx Uncooled Focal Plane Arrays
  • Resolution160×120
  • Pixel Interval17μm
  • Response Waveband8μm to 14μm
  • NETDLess than 40 mK (@25°C,F#=1.1)
  • Focal Length6.2mm
  • Focus ModeManual
  • Field Of View25° × 18.7°
  • IFOV2.74 mrad
  • Image Frequency25 hz
  • ApertureF 1.1
  • Optical
  • Picture ResolutionConfigurable: 2 MP, 5 MP, 8 MP
  • Video Resolution640 × 480
  • Thermography
  • RulesMax. Temperature; Min. Temperature; Center Temperature; Custom Point/Line/Area Thermography
  • Thermographic RangeFrom -20°C to +550°C (-4°F ~ +1022°F)
  • AccuracyMax (±2°C, ±2%)
  • Image Display
  • Monitor640 × 480 resolution 3.5-inch LCD touch display
  • Image ModeThermal view, B/W optical view, image fusion view are selectable
  • PalettesBlack hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain
  • Image FusionFusion view of thermal view and overlaid details of the optical channel
  • Digital ZoomThermalú║1×, 2×, 4×
  • System Function
  • Laser LightSupport (Point to the thermography target)
  • CaptureThermal/Optical/Fusion image
  • VideoThermal/Optical/Fusion image
  • LightingYes
  • Text CommentYes
  • Voice CommentYes
  • Wi-FiYes
  • StorageBuilt-in memory module (16 G)
  • ClientiVMS-4800 (PC);Hik-Thermal (Mobile APP)
  • Battery TypeDismountable and rechargeable Li-ion Battery
  • Battery Operating Time5 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light off. 4 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light on.
  • General
  • Hardware InterfaceType-C USB
  • Power Supply5 VDC/2 A
  • Power ConsumptionMax. 4.5 W
  • Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Protection LevelIP54
  • Drop Test Height2 m (6.56 feet)
  • WeightWith Battery: 653 g (1.44 lb) Without Battery: 511 g (1.13 lb)
  • Dimension244 mm × 100 mm × 104 mm (9.6 ″ × 3.9 ″ × 4.1 ″)
Brouchure: https://cdn1.npcdn.net/attachments/15855539190af13fd259011654fa8e50c31a31187f.pdf
