DS-2CD2051G1-IDW. Hikvision 5 MP Outdoor Fixed Bullet Network Camera with Build-in Mic

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CD2051G1-IDW. Hikvision 5 MP Outdoor Fixed Bullet Networ

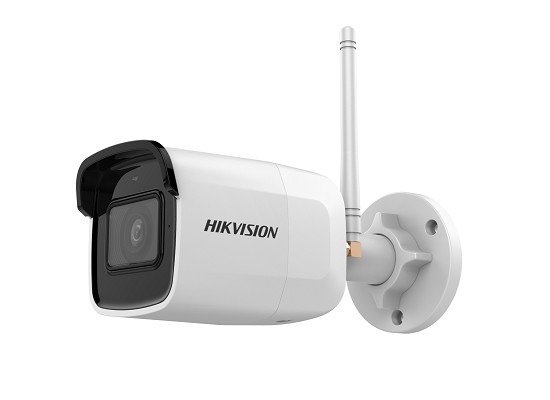

DS-2CD2051G1-IDW. Hikvision 5 MP Outdoor Fixed Bullet Network Camera with Build-in Mic

  • High quality imaging with 5 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to DWDR technology
  • Up to 128 GB SD card slot for storage
  • Built-in microphone for real-time audio security
  • Wi-Fi connection and easy installation
  • Hik-Connect cloud service and app for remote management and viewing of devices
  • Water and dust resistant (IP66)
  •

  •

  •

  •

  •

  • Camera
  • Image Sensor1/2.7'' Progressive Scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic RangeDWDR
  • DNR3D DNR
  • Axis AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Auto-IrisNo
  • ApertureF2.0
  • FocusNo
  • FOV2.8 mm, horizontal FOV: 100°, vertical FOV: 74°, diagonal FOV: 130°,4 mm, horizontal field of view: 75°, vertical FOV: 55°, diagonal FOV: 98°
  • Lens MountM12
  • Focal Length2.8/4 mm
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850nm
  • Video
  • Max. Resolution2560 × 1920
  • Main Stream50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Video CompressionMain stream: H.265/H.264 ,Sub-stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8Mbps
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Smart Feature-Set
  • Region Of InterestSupport 1 fixed region for main stream and sub-stream
  • Image
  • Image EnhancementBLC/3D DNR
  • Image SettingSaturation, brightness, contrast and sharpness are adjustable via client software and web browser
  • Day/Night SwitchAuto/Scheduled/Day/Night
  • Wi-Fi
  • Wireless StandardsIEEE802.11b, 802.11g, 802.11n
  • Frequency2.412 GHz - 2.472 GHz
  • Channel Bandwidth20/40MHz
  • Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
  • Transfer Rate11b/g: 54Mbps, 11n: up to 150Mbps
  • Wireless RangeUp to 50 m ,(The performance varies based on actual environment)
  • Network
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
  • Network StorageSupport built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Protocols802.11b: CCK, QPSK, BPSK,,802.11g/n: OFDM
  • APIONVIF(PROFILE S,PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 Built-in mic, mono sound
  • AlarmNo
  • Video OutputNo
  • On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
  • General
  • Firmware VersionV5.5.60
  • General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • ResetYes
  • Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial plug power
  • Power Consumption And Current12 VDC, 0.5 A, Max: 6W, <20dBm
  • MaterialFront cover: plastic, camera body: metal
  • DimensionsCamera: 69.7 mm × 67.9 mm × 171.4 mm (2.7'' × 2.7'' × 6.7''),With package: 216 mm × 121 mm × 118 mm (8.5'' × 4.8'' × 4.6'')
  • WeightCamera: 372g (0.8lb),With package: 659g(1.5lb)
  • Interface ProtectionIP66
  • Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports

Brouchure: https://cdn1.npcdn.net/attachments/15846746600af13fd259011654fa8e50c31a31187f.pdf
