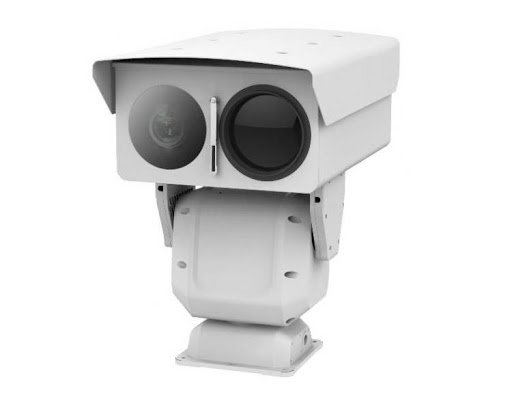

DS-2TD8166-180ZE2F/V2. Hikvision Thermal & Optical Bi-spectrum Network Stable PTZ Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2TD8166-180ZE2F/V2. Hikvision Thermal & Optical Bi-sp

DS-2TD8166-180ZE2F/V2. Hikvision Thermal & Optical Bi-spectrum Network Stable PTZ Camera

  • High sensitivity thermal module with 640 x 512 resolution
  • NETD is less than 40 mk (@25° C, F#=1.0)
  • Supports contrast adjustment
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Up to 15 palettes of adjustable color
  • Smart tracking: Panorama, event and multi-scene patrol
  • Smart tracking linkage: Thermal and optical views
  • Powerful behavior analysis algorithm, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
  • Reliable temperature-anomaly alarm
  • Advanced fire detection algorithm
  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Interval17μm
  • NETDless than 40mk(@25°C,F#=1.0)
  • MRAD0.38 to 0.09 mrad
  • Field Of ViewWIDE: 13.8° × 11°; TELE:3.46° × 2.77°
  • Min. Focusing Distance5 m
  • ApertureF1.2
  • Response Waveband8μm to 14μm
  • Optical Module
  • Max. Resolution1920 × 1080
  • Image Sensor1/1.8’’ Progressive Scan CMOS
  • Min. IlluminationColor : 0.005 Lux @ (F3.5, AGC ON),B/W : 0.0005 Lux @ (F3.5, AGC ON)
  • Field Of View31.5 ° × 23.9 ° to 0.51 ° × 0.39 ° (Wide-Tele)
  • Aperture RangeF3.5 to Close
  • Focus ModeAuto / Semiautomatic / Manual
  • WDRDigital
  • Shutter SpeedPAL: 1-1/30,000s / NTSC: 1-1/30,000s
  • Day & NightIR Cut Filter
  • Smart Function
  • VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
  • Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
  • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy±8 °C (14.4 °F)
  • Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
  • PTZ
  • Movement RangePan: 360° Continuous Rotate; Tilt: From -45 ° to + 45 ° (auto flip)
  • Pan SpeedConfigurable, From 0.01°/s to 40°/s
  • Tilt SpeedConfigurable, From 0.01°/s to 20°/s
  • Proportional ZoomYes
  • Presets300
  • Patrol Scan8; Up to 32 Presets Per Patrol
  • Pattern Scan4; More Than 10 Minutes Per Pattern
  • ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • PT StatusTurn On/Turn Off
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • Network
  • Main StreamOptical:50Hz:25fps(1920×1080), 25fps(1280×960), 25fps(1280×720),Optical:60Hz:30fps(1920×1080), 30fps(1280×960), 30fps(1280×720),Thermal: 50fps(640 × 512)
  • Sub StreamOptical:50Hz:25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144),Optical:60Hz:30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120),Thermal: 50fps(640 × 512)
  • Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/MPEG4
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP, PPPoE, Bonjour
  • Simultaneous Live ViewUp to 20-ch
  • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
  • Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Integration
  • Alarm InputUp to 7-ch Relay Input (0-5V DC)
  • Alarm OutputUp to 2-ch; Support Alarm Linkage
  • Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
  • Audio OutputLinear Level; Impedance: 600Ω
  • EthernetBuilt-in RJ45; 10M/100M Ethernet Interface
  • SD Memory CardBuilt-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
  • Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
  • RS485Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
  • Application ProgrammingOpen-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
  • ClientiVMS-4200
  • Web BrowserIE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages
  • General
  • Menu LanguageEnglish
  • Power48V DC/5A
  • Power Consumption220W
  • Work Temperature/HumidityFrom -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimensions649.2 mm × 438 mm × 261.3 mm (25.56 ‘’ × 17.24 ‘’ × 10.29 ‘’)
  • WeightApprox. 60kg (132.3 lb)
Brouchure: https://cdn1.npcdn.net/attachments/15837398380af13fd259011654fa8e50c31a31187f.pdf
